Siemens 6SELA Rack Preamps |
|
|
|
These preamps are very, very nice. They need an external power supply or can
be powered by a Siemens power amp.
Unfortunetaly none of
them has a real RIAA phono stage, but it is not too complicated to get them
upgraded this way. |
|
|
|
Model |
Picture |
Tubes |
Comment |
|
 |

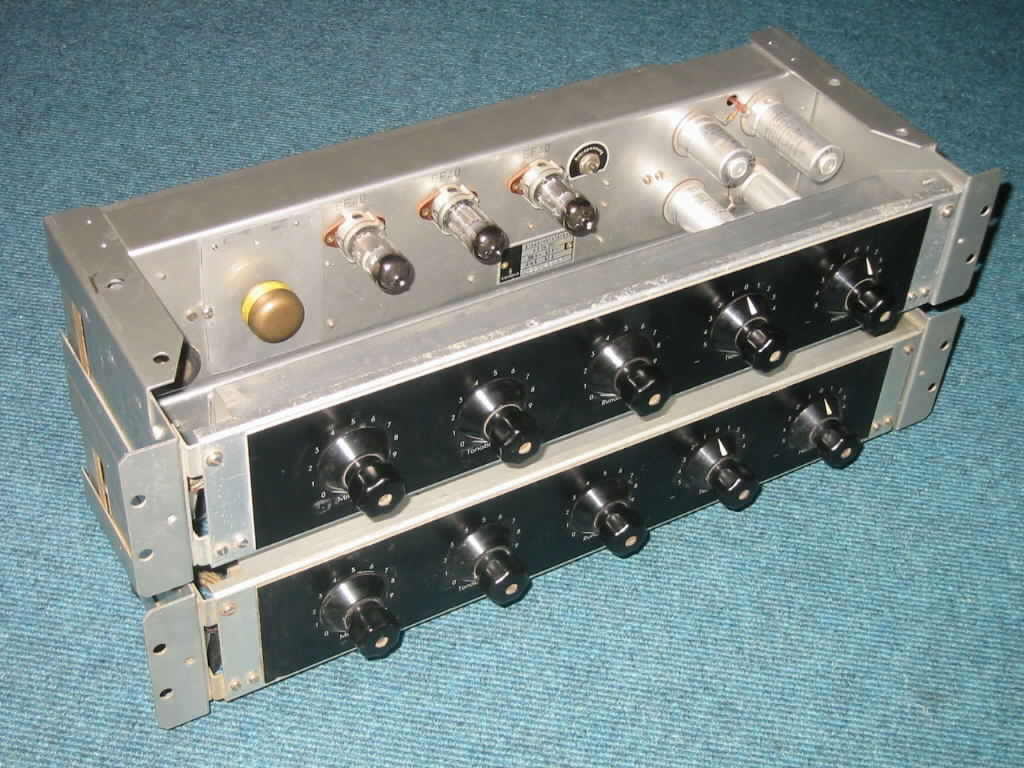

6SELA
2117 |
 |
EF40
EF40
EF40 |
First 1950s
version of these amps. Box shielded input transformer for the symmetrical
microphone input. |
|
 |

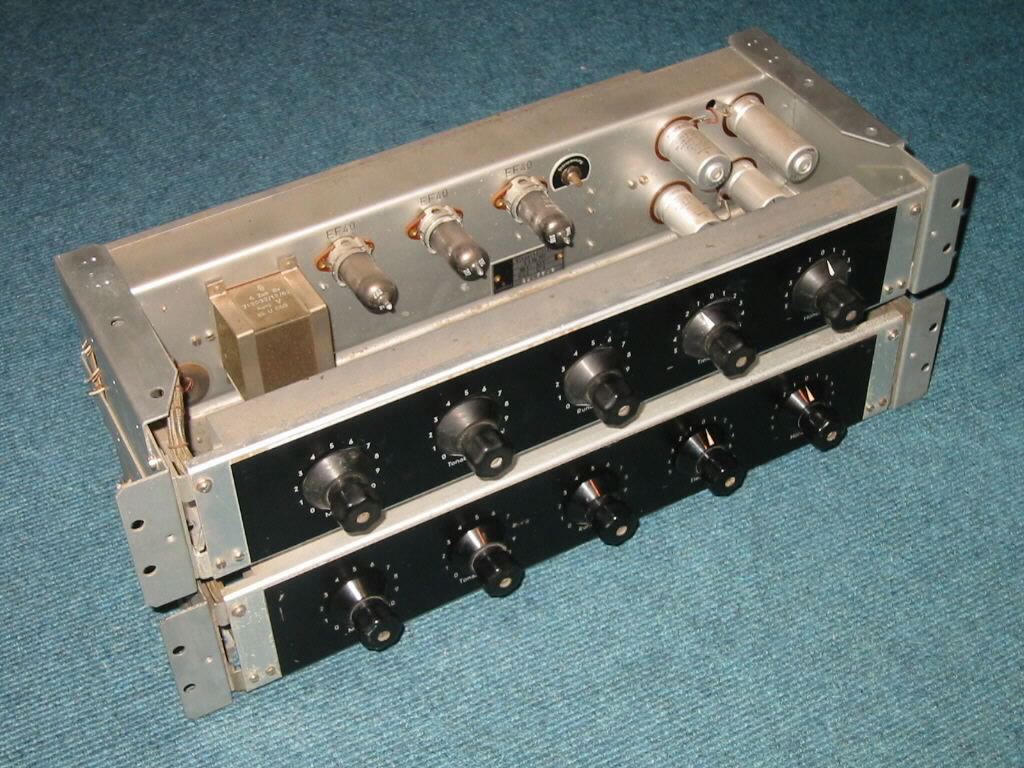

6SELA
2117 |
 |
EF40
EF40
EF40 |
Very early 1950s
version of these amps. Only one T41 input transformer for the symmetrical
microphone input. |
|
 |

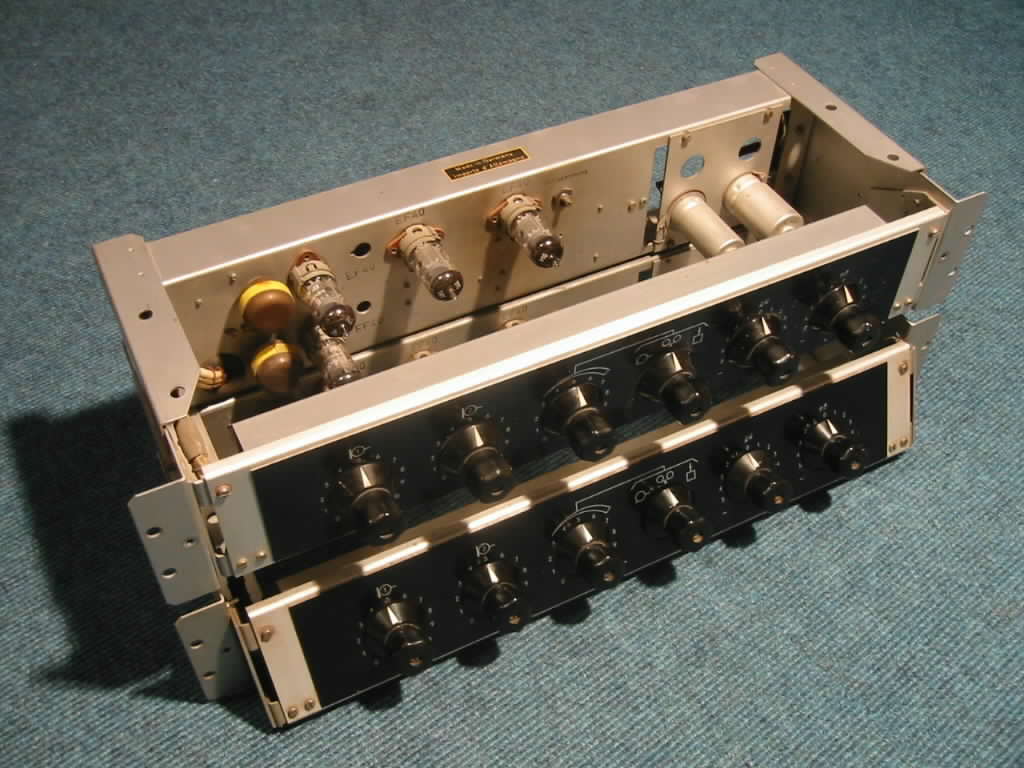

6SELA
2139 |
 |
EF40
EF40
EF40
EF40 |
Pretty similar to the above preamp. 1 additional microphone input
leads to a pair of T41 input transformers. |
|
 |

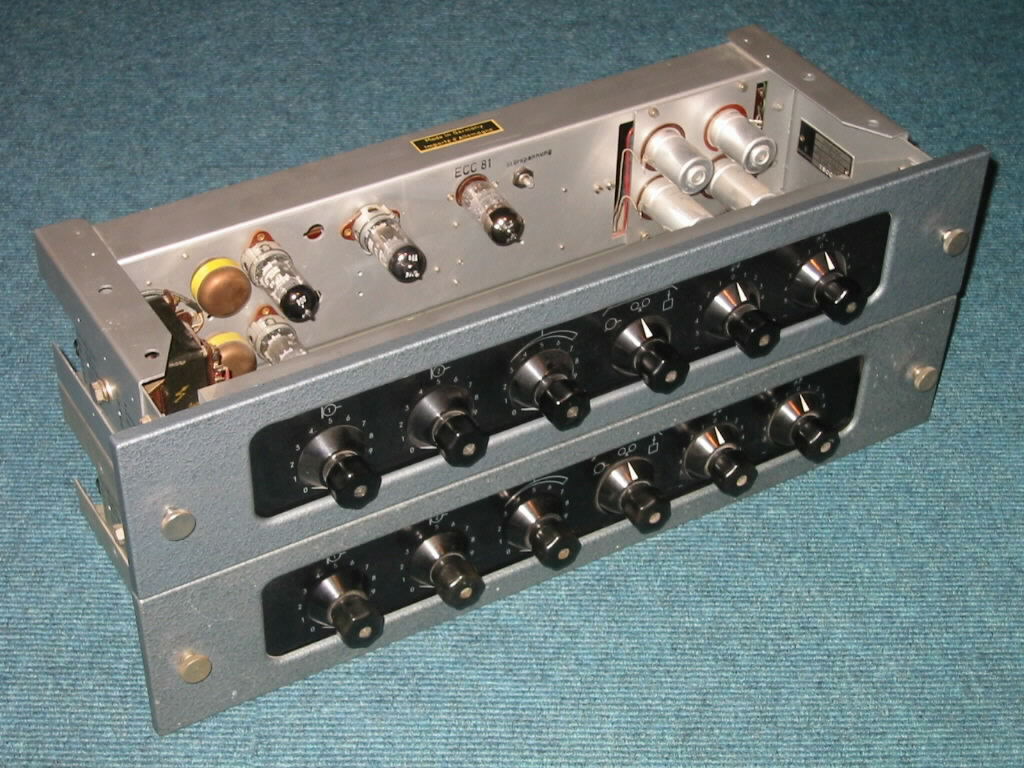

6SELA
2145
|
 |
EF40
EF40
EF40
ECC81 |
Rare version. The last one using the classic EF40 tubes and
the first one having a cathode follower output stage with 600 Ohms
output transformer of very high quality.
Something like
the deluxe version of the 2139 preamp. |
|
 |

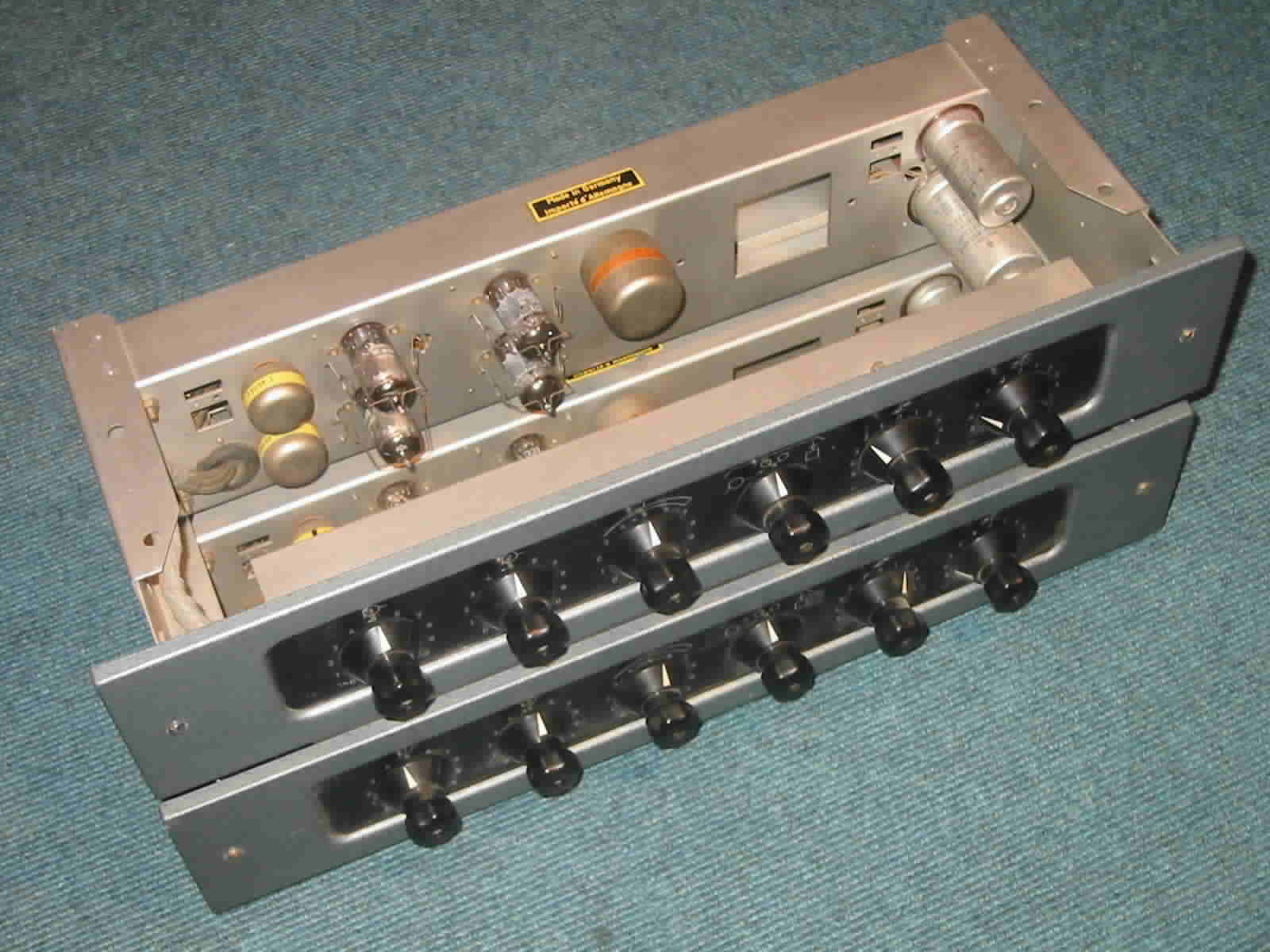

6SELA
2154 |
 |
EF86
EF86
ECC83
ECC83 |
Last version of the tube equipped preamps from Siemens. The EF86s
substituted the EF40s. Cathode follower output stage with 600 Ohms
output transformer of very high quality.
Also found with ECC81 output tubes
A limiter with
transformer could be installed if needed (cutout provided). |
|
|
|


|
|
 |
|
|
|
|
|
|
|
|
|
