| Siemens 2000 16mm movie projector amps | |||||||||||
|
The Siemens 2000 projector was the most sold 16mm projector in Germany. Thousands of them were sold to schools or companies. Usually the projector was accompanied by a green speaker enclosure with L307 or L405 speaker. Forget the preamp section of these amps - very noisy and unlinear frequency response. Some power amps are good - some need mods to sound like hifi equipment. Some of them do not use feedback (or very low) and carry a lot of hum with them (not too disturbing with the original speakers, but with a good woofer or horn system ....). |
|||||||||||
| Model | picture | Output | Drivers | Comment | |||||||
 |
) |

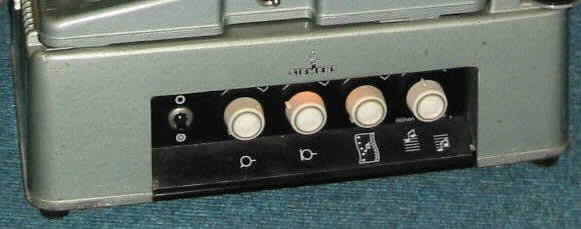

EL41 PP |
EF40 EF40 EF40 EF40 |
First version of these amps introduced in 1956. Rated at 10 watts with rare tubes. Capacitors need careful check (hum on most units). Better use the later EL84 PP version. |
|||||||
|
|
) |

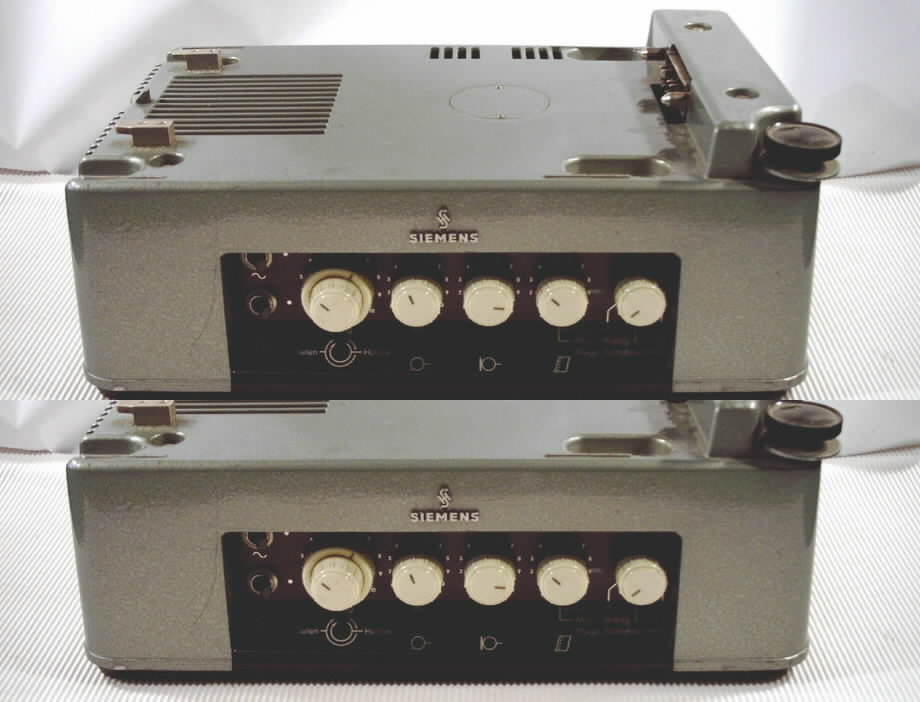

EL41 PP |
EF40 EF40 EF40 ECC40 |
Later version of the avove amp with magnetic sound facilities. Pretty rare amp. |
|||||||
|
|

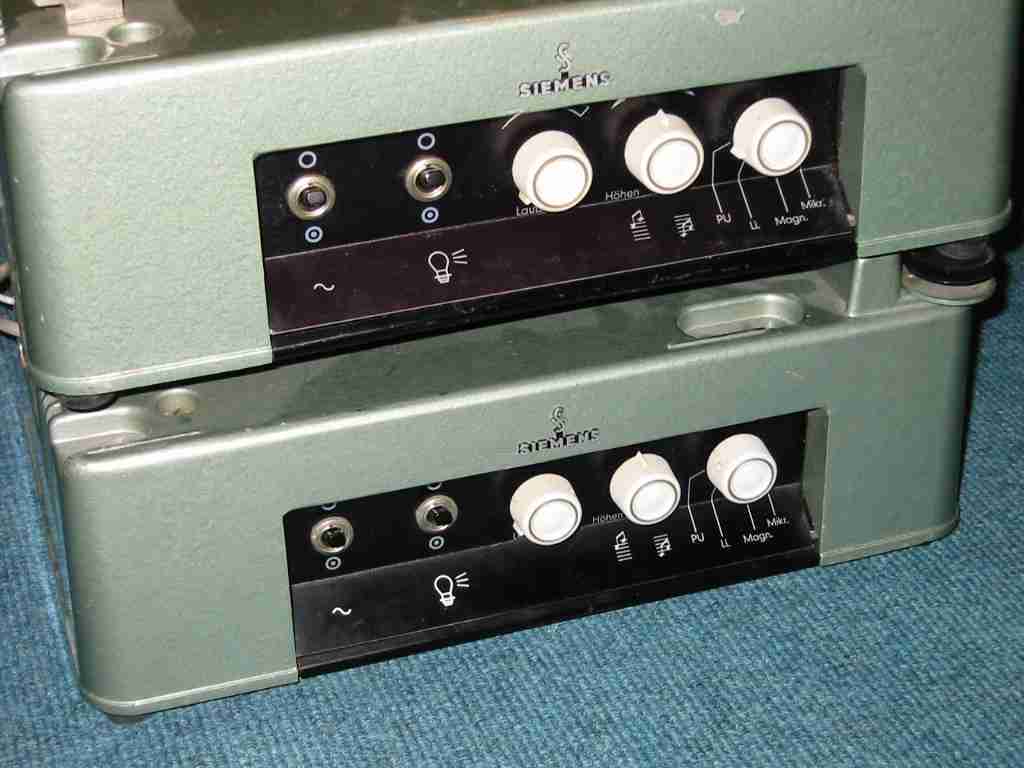

Smf V 4b |
) |

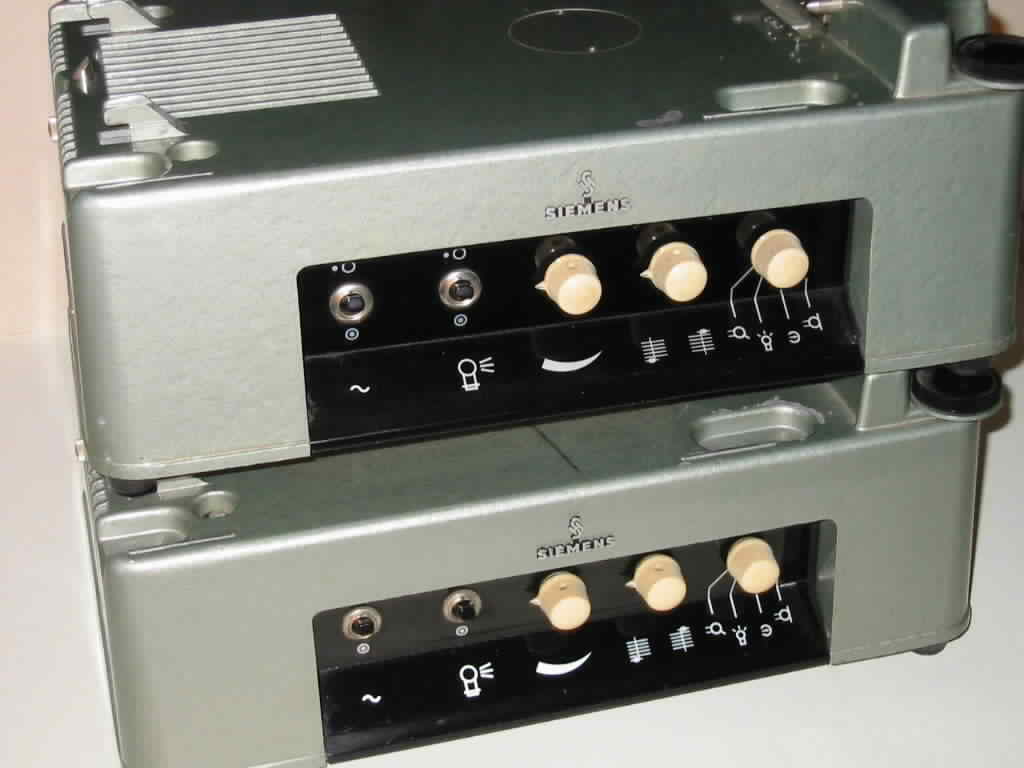

EL84 SE |
EF40 EF40 |
Introduced together with the above amp, this is my favourite one from this series. 5 watts of single ended output power. Bigger ouput transformer than in the later EF86 type. Better sound! |
||||||
|
|

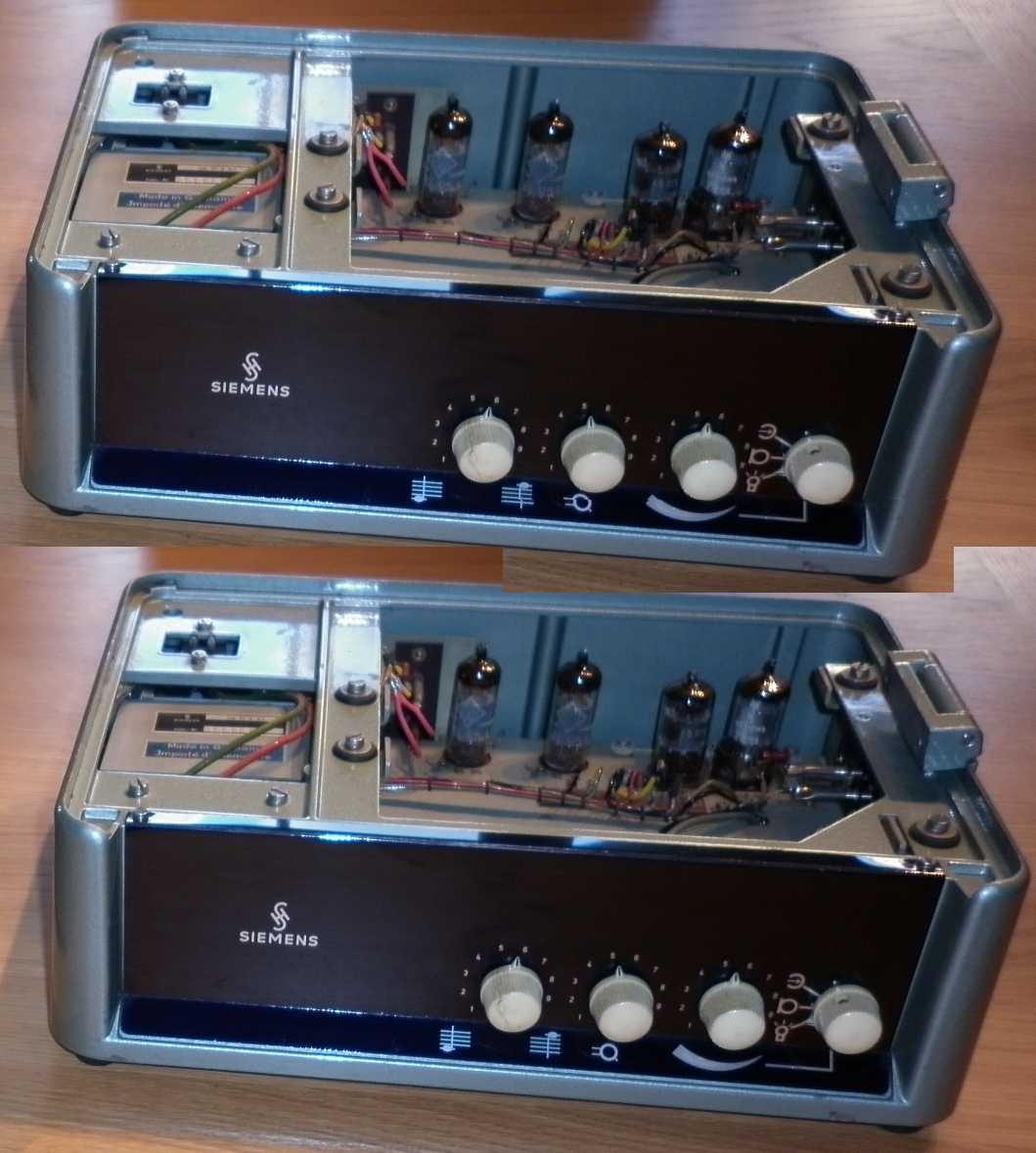

Sf V 6.1 |
) |

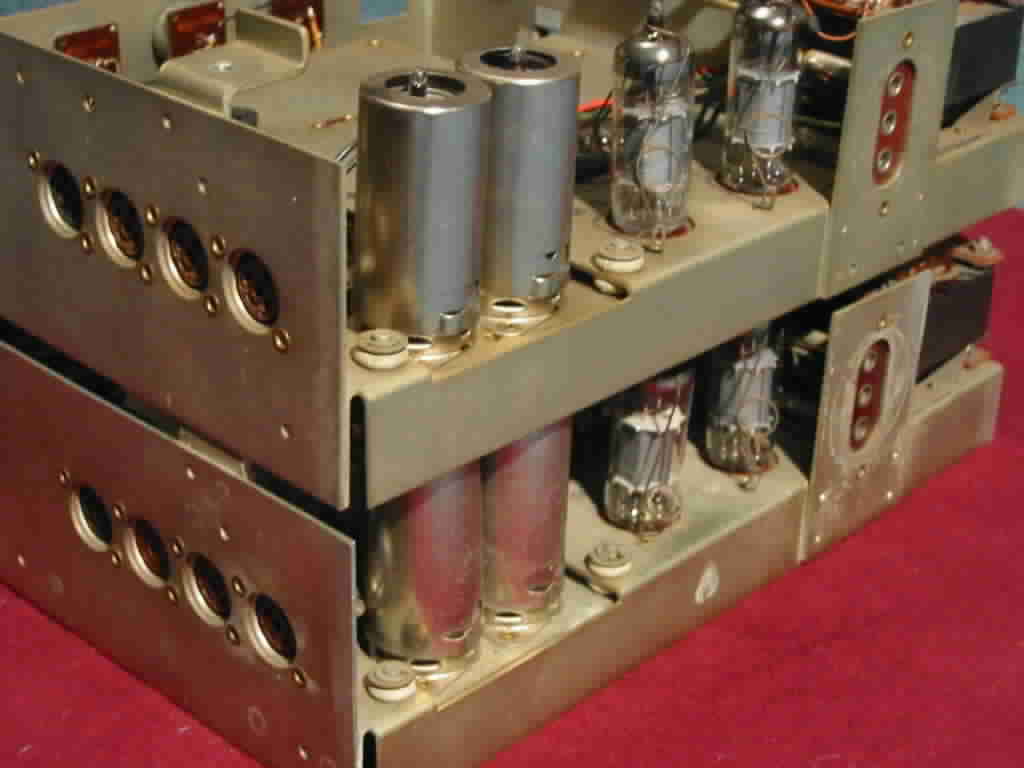

EL95 PP | EF86 ECF80 |
Originally not seperable from the projector. This is why this unit is mostly found without top plate. |
||||||
|
|

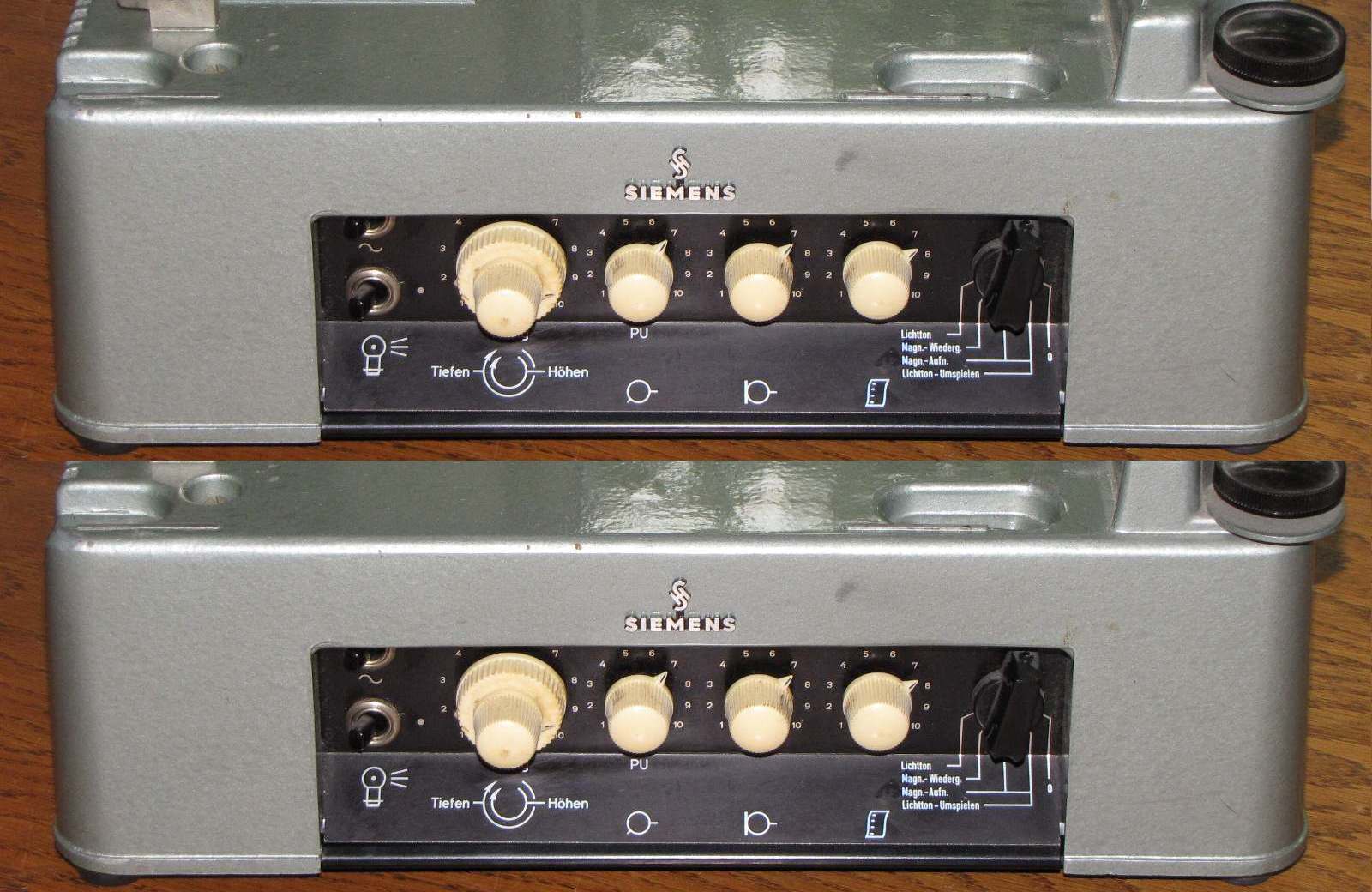

Sf V 6.2 |
) |
EL41 PP |
EF40 EF40 ECC83 ECC83 |
Precurser to the 6.7 amp, but using EL41 output tubes. Good. Rare. |
||||||
|
|
Sf V 6.4 |
 |
EL84 SE |
EF86 EF86 |
Inferior to the EF40 version. Smaller output transformer. Needs proper modification (click here to see how to do this) to perform as Hifi amp. |
||||||
|
|

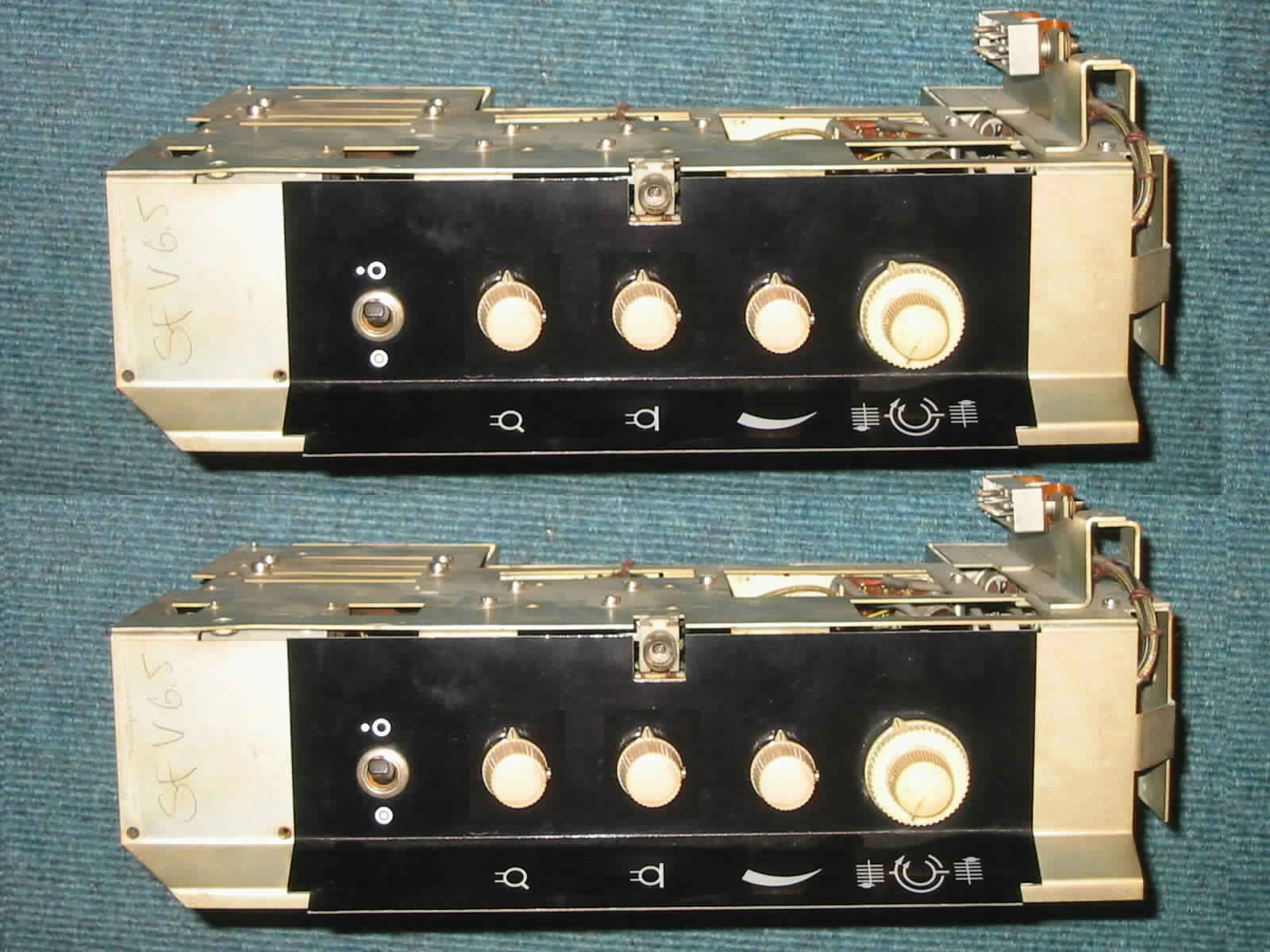

Sf V 6.5 |
) |
EL84 PP |
EF86 EF86 EF86 ECC83 |
Later version of the above amp. Very small OPT. Much inferior. |
||||||
|
|

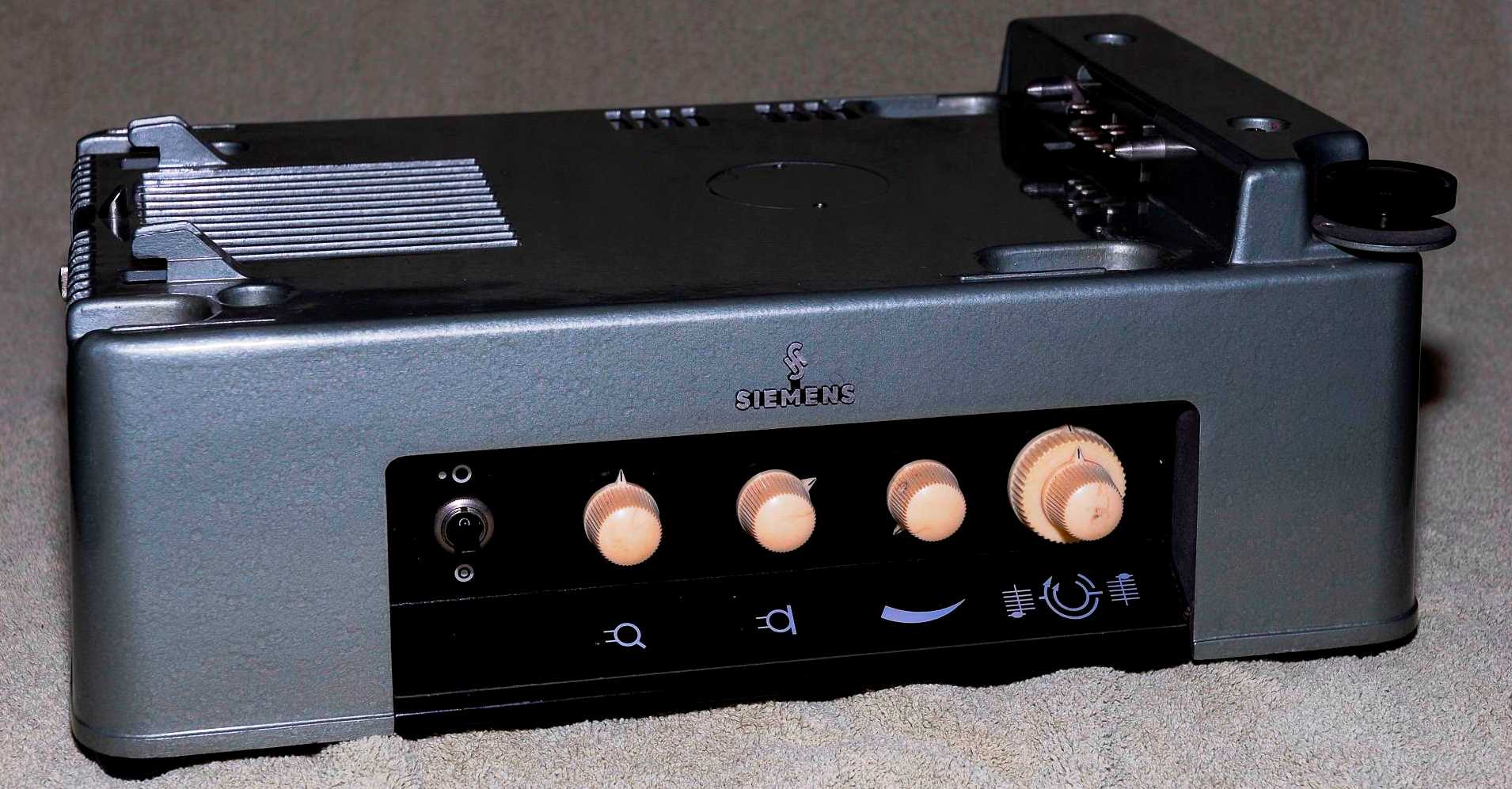

Sf V6.5s |
) |
EL84 PP |
EF86 EF86 ECC83 ECC83 |
Amp found in Denmark. Similar to 6.7 version, but not having magnetic sound facilities. |
||||||
|
|
Sf V 6.6 |
) |
EL95 PP | EF86 ECF80 |
Originally not seperable from the projector. This is why this unit is mostly found without top plate. |
||||||
|
|
Sf V 6.7 |
) |
EL84 PP |
EF86 EF86 ECC83 ECC83 |
The best PP amp. Some units carry a T42 input transformer - very nice. Bad preamp section, but the power amp section is good. Very common unit. |
||||||
|
|
|||||||||||
|
|
|||||||||||
