Siemens - Klangfilm
|
Output Transformers
|
| 6SELA Siemens / Klangfilm Output Transformers | |||||||
|
The outstanding quality of the Siemens / Klangfilm power amps results from the employment of excellent parts of highest quality and stability. Most output transformers are oversized and use finest core materials.
Looking at the different types the winners are the former ELA transformers for 100V operation as many have 4 accessible interleaved windings, which lead to a very extended frequency response and very low distortion. Furthermore they also allow to be used in ultralinear operation or with different interleaving combinations. |
|||||||
| Type | Picture | Found in | orig. operation | core size | Comments and Suggestions | ||
|
25 Watts Transformers |
|||||||
 |

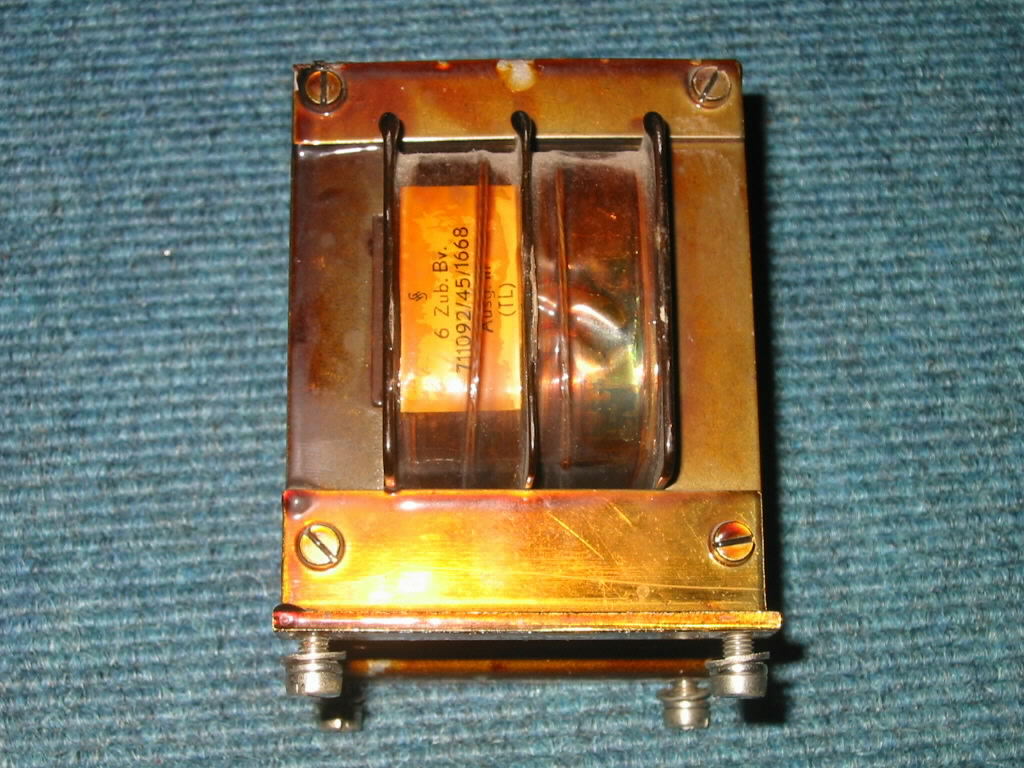

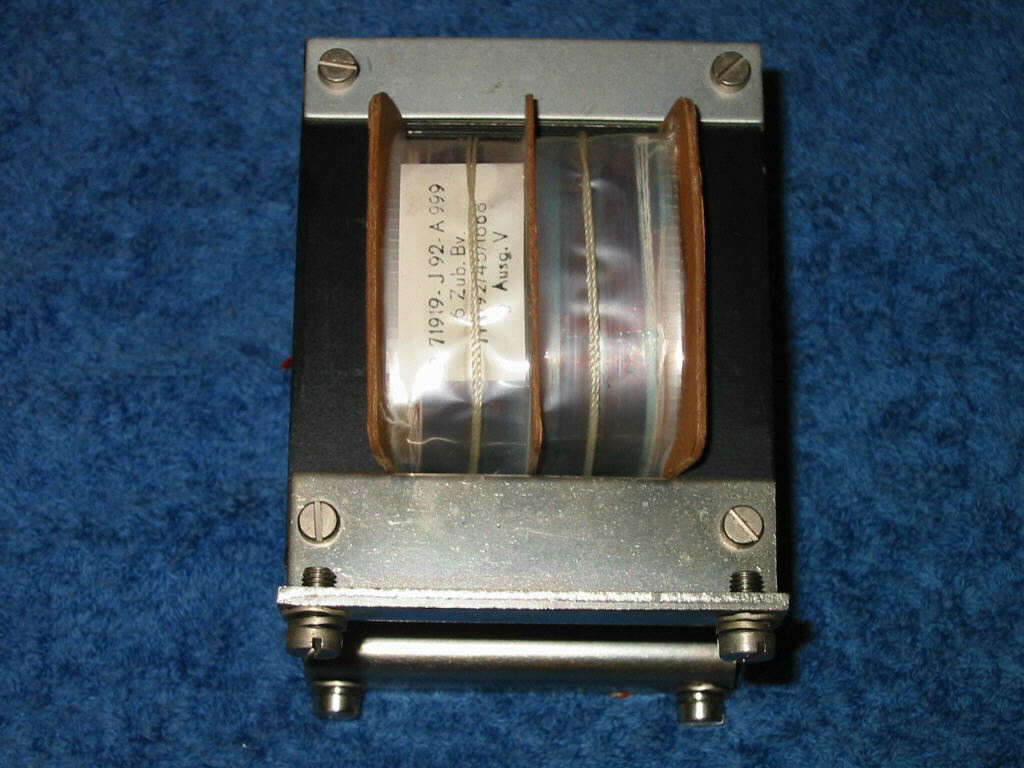

711092/ 45/1668 |
) |
6SELA2524 (early versions) |
25 watts EL34 PP - 400 Ohms |
EI 93x79 46mm |
Four secondary windings of 100 Ohms allow to wire the transformer for 16-32 Ohms operation. This transformer delivers 25 watts of pure sine wave output power into 16 Ohms in the original circuit. Great! |
|
|
|
) |
6SELA2524 (later versions) |
25 watts EL34 PP - 400 Ohms |
EI 93x79 46mm |
Four secondary windings of 100 Ohms allow to wire the transformer for 16-32 Ohms operation. This transformer delivers 25 watts of pure sine wave output power into 16 Ohms in the original circuit. Great! |
||
|
|

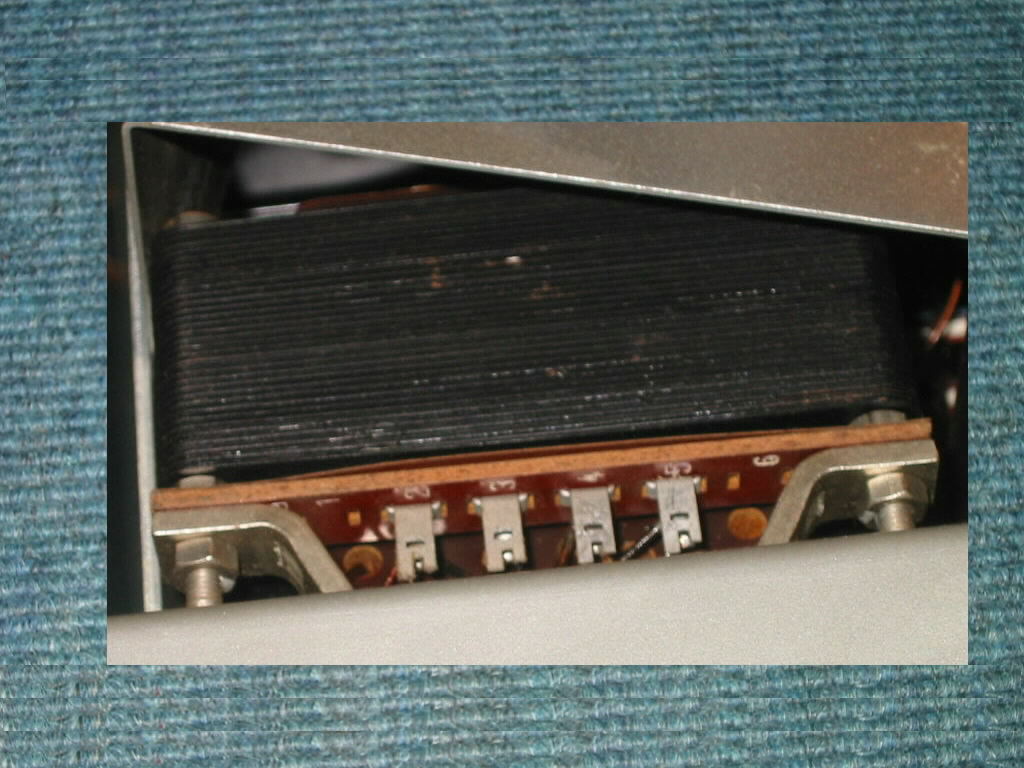

714085 |
) |
6SELA2737 |
25 watts EL34 PP - 400 Ohms |
M85 36mm |
This output transformer looks pretty similar to the one found in the Klangfilm 408a amp (the 714085-35-675), but this here can only be used for 400Ohms. Click here for data. |
|
|
50 Watts Transformers |
|||||||
|
|
) |
6SELA2754 6SELA2735 KLV 551 |
50 watts EL34 PP - 200 Ohms |
M102b 52mm |
Two 100 Ohms secondary windings (once interleaved). Can be parallelly wired to obtain 50 Ohms secondary. Transformer still works good on 16-32 Ohms with lower primary. |
||
|
|

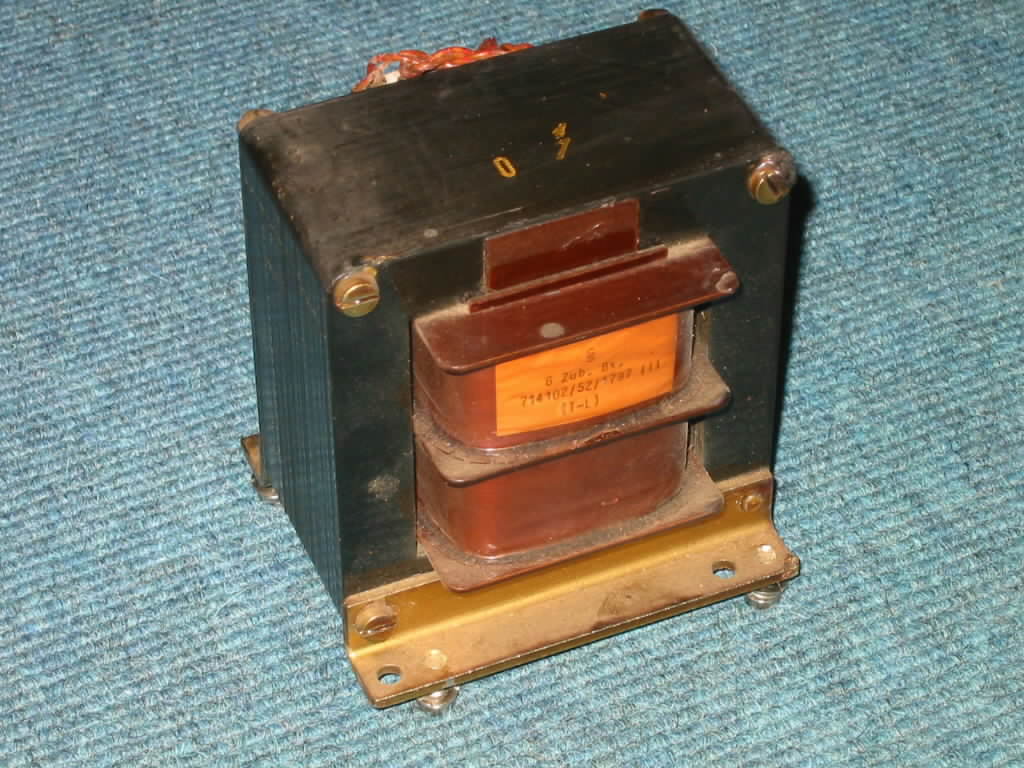

714102/ 52/1797 |
) |
6SELA2525 (early versions) |
50 watts EL34 PP - 200 Ohms |
M102b 52mm |
Four secondary windings of 50 Ohms allow to wire the transformer for 8-16 Ohms operation. This transformer delivers 51 watts of pure sine wave output power into 8 Ohms in the original circuit. Great! |
|
|
|

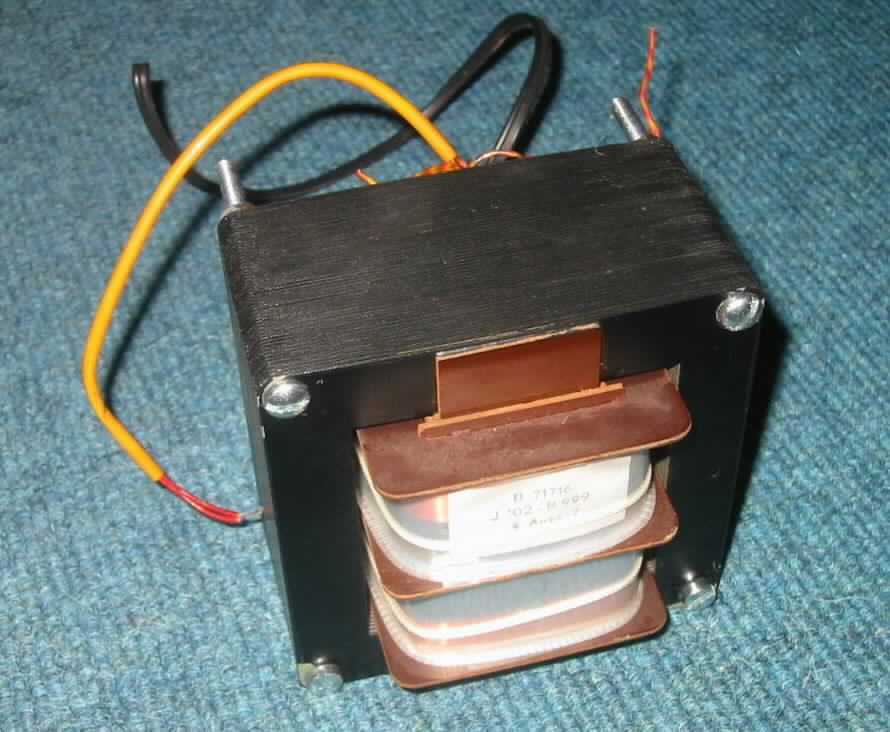

71716 J102 D999 |
) |
6SELA2525 (later versions) |
50 watts EL34 PP - 200 Ohms |
M102b 52mm |
Four secondary windings of 50 Ohms allow to wire the transformer for 8-16 Ohms operation. This transformer delivers 51 watts of pure sine wave output power into 8 Ohms in the original circuit. Great! |
|
|
100 Watts Transformers |
|||||||
|
|

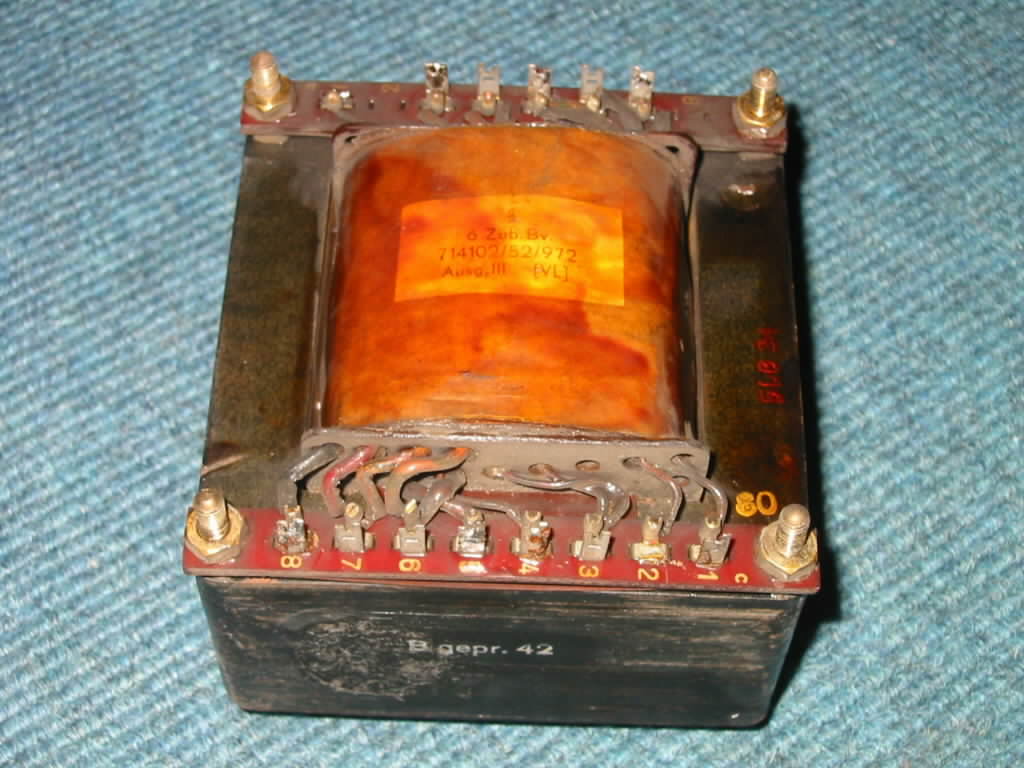

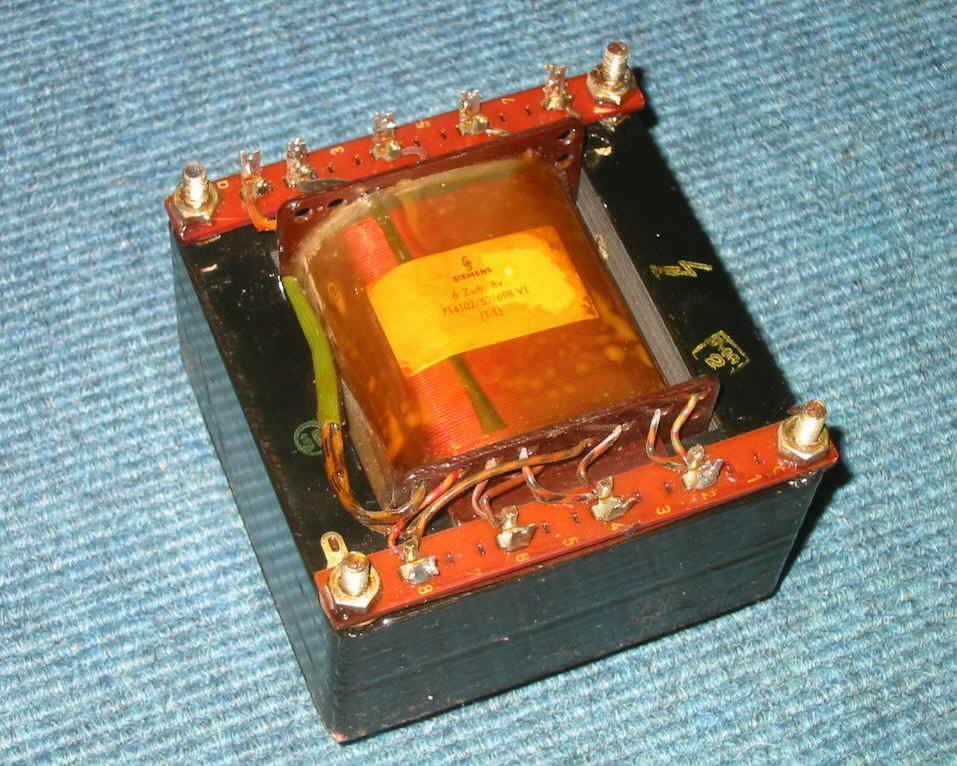

714102/ 52/972 |
) |
6SELA2803 6SELA2797 6SELA2798 (early versions) |
100 watts EL34 PP - 100 Ohms |
M102b 52mm |
One 0.7 DC-W(middle) and two 1.4W secondary windings lead to 100W. The inner 0.7W winding works OK with 8W speakers (up to 80 watts). Primary DC-R: 225-122-CT-122-225 Ohms. |
|
|
|

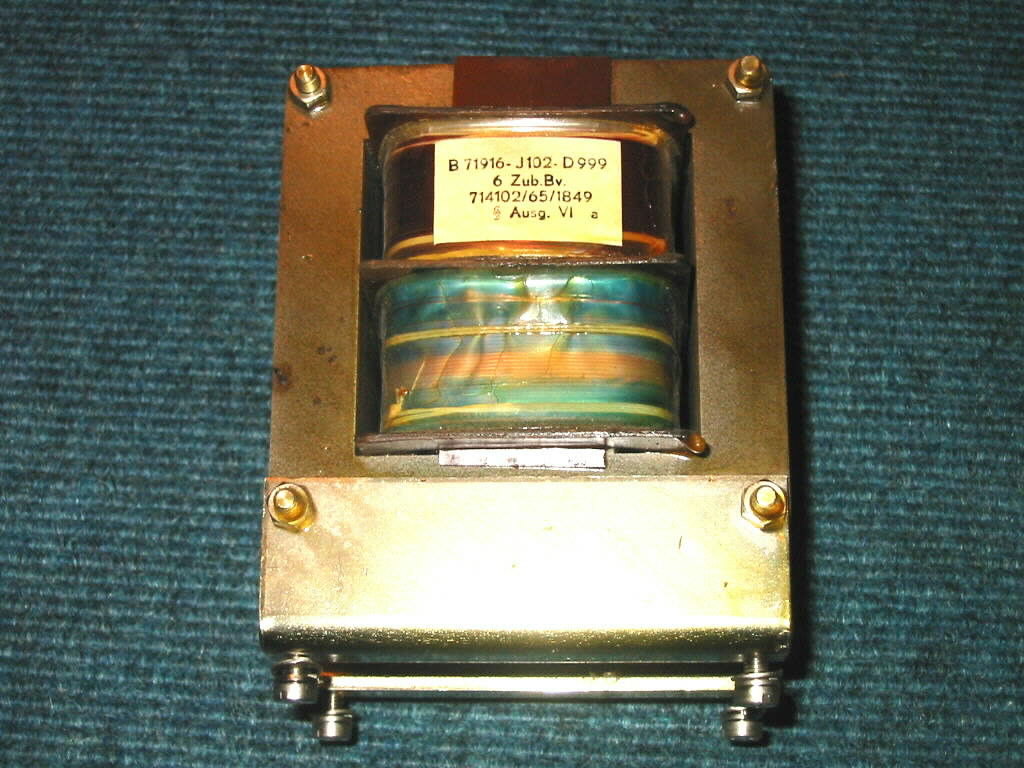

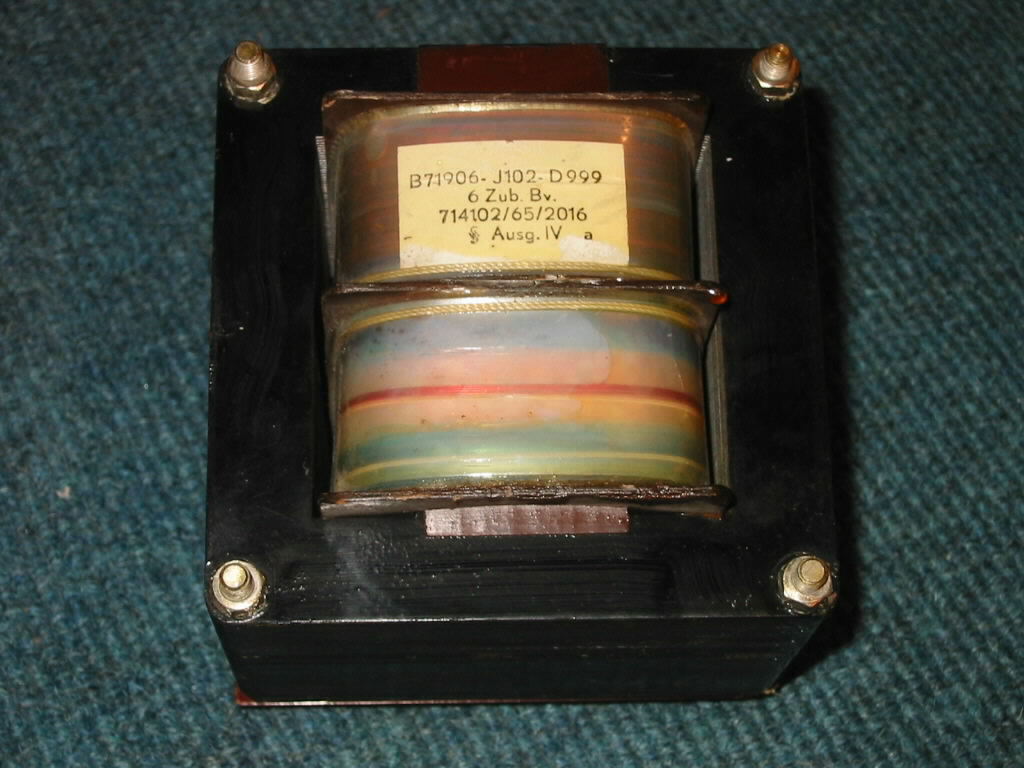

71916-J102D999 714102/ 65/1849 |
) |
6SELA2600 |
100 watts EL34 PP - 100 Ohms |
M102b 66mm |
Four secondary windings of 25 Ohms allow to wire the transformer for 4-8 Ohms operation. Perfect for hifi PP and SE projects. Great! One of the best OPT ever made. |
|
|
|
) |
6SELA2805 |
100 watts EL34 PPx2 - 100 Ohms |
M102b 66mm |
Four secondary windings of 25 Ohms allow to wire the transformer for 4-8 Ohms operation. Perfect for hifi PP and SE projects. Great! One of the best OPT ever made. | ||
|
|

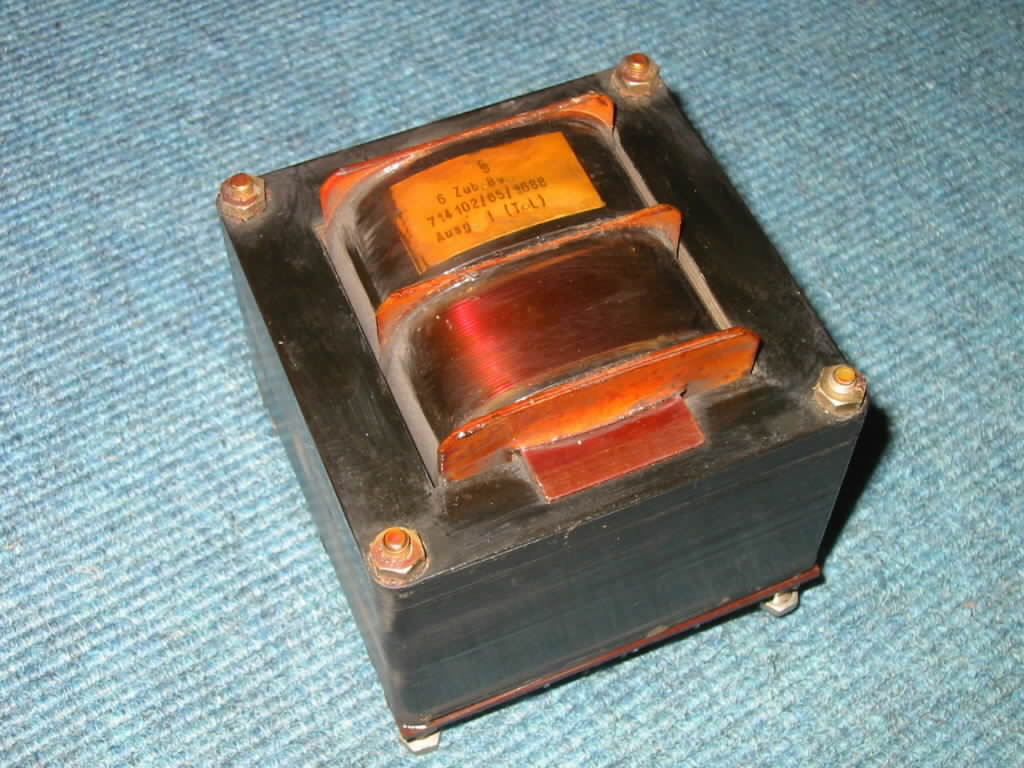

714102/ 65/1688 |
) |
6SELA2798 (later versions) |
100 watts EL34 PP - 100 Ohms |
M102b 66mm |
Four secondary windings of 25 Ohms allow to wire the transformer for 4-8 Ohms operation. Perfect for hifi PP and SE projects. Great! One of the best OPT ever made. | |
| 250 Watts Transformers | |||||||
|
|
711135/ 70/1518 |
 |
6SELA2796 |
250 watts EL34 PPP - 40 Ohms |
M102b |
10 secondary windings allow to wire the transformer for 4-8 Ohms (3.6 or 6.4 Ohms) operation. Perfect for hifi PP and SE projects. | |
|
|
|||||||
