The ECC82 Gallery 12AU7 E82CC ECC802S |
|||||
|
The ECC82 is quite similar to the 6SN7 and so used in driver stages and preamps. It is not so popular as the ECC83 and so the variety is not so big. |
|||||
| Telefunken types | Siemens & Halske types | ||||
 |

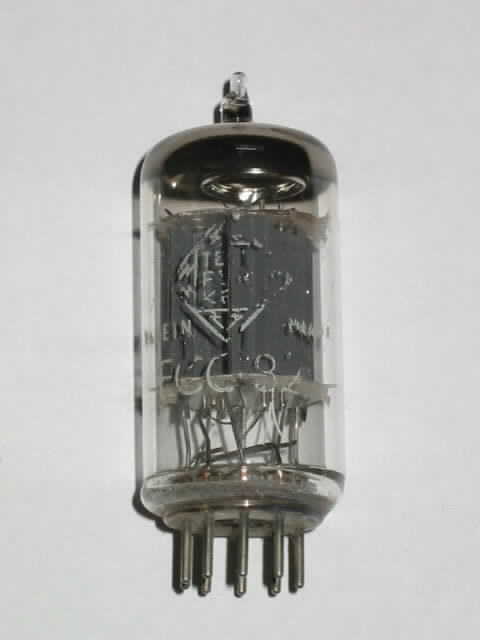

Telefunken ECC82 Identified by: - smooth plate - <> between the pins Comment: Quite common tube. |
 |
S & H ECC82 Identified by: - K6? ≠6X code - long plate + D-Getter Comment: Ultra rare early type. |
||
|
|
|||||
 |

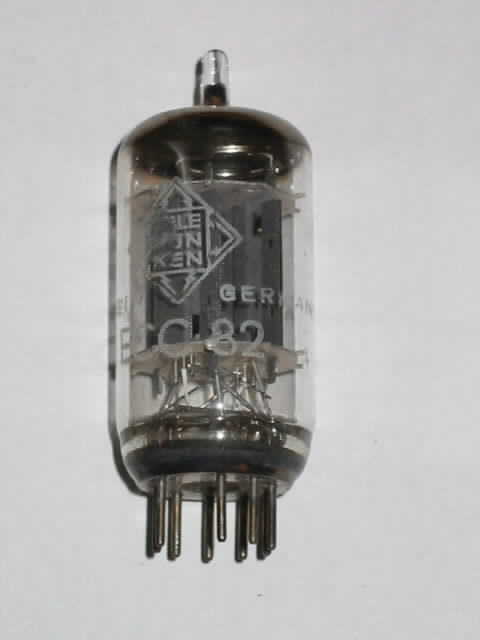

Telefunken ECC82 Identified by: - ribbed plate - <> between the pins Comment: Quite common tube. |
 |
S & H ECC82 Identified by: - Gf4 ≠XX code - silver plate - double getter support Comment: Very rare. Picture with box here. |
||
|
|
|
||||
 |

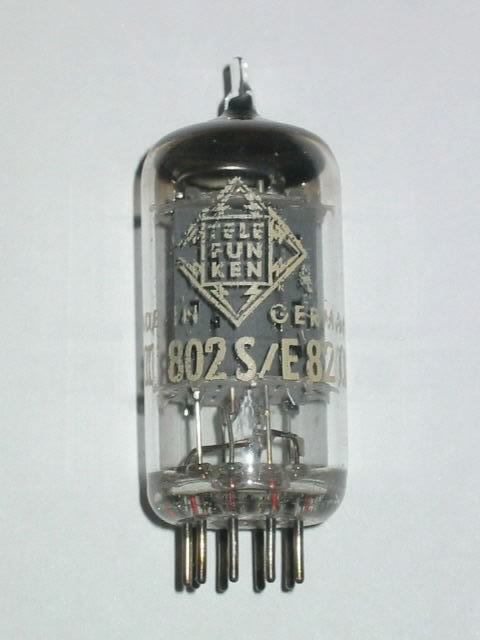

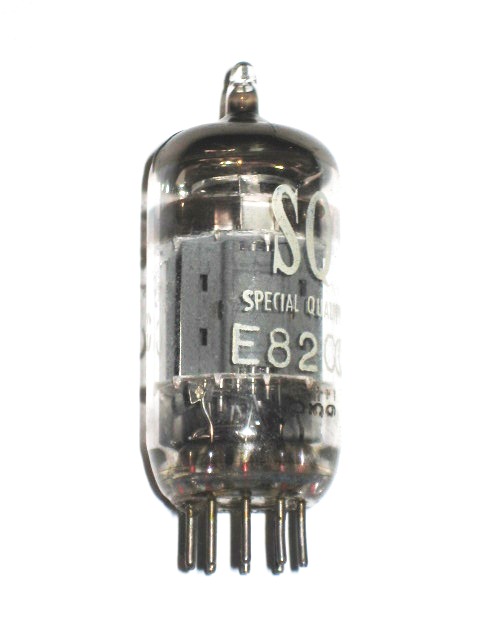

Telefunken ECC802S E82CC Identified by: - silver plate wings - long ribbed plates Comment: Rare. Another picture here. |
 |

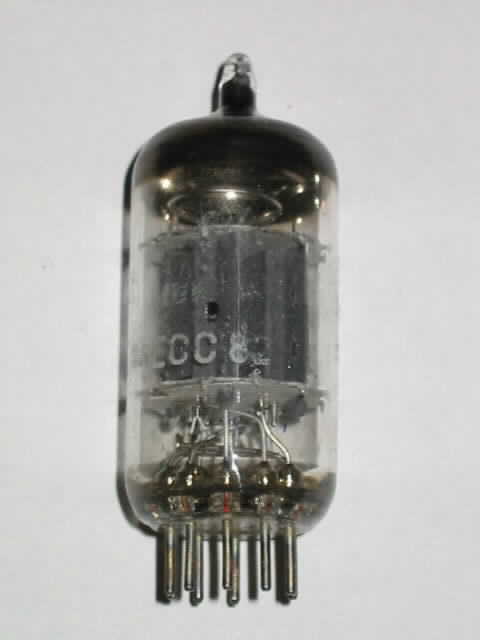

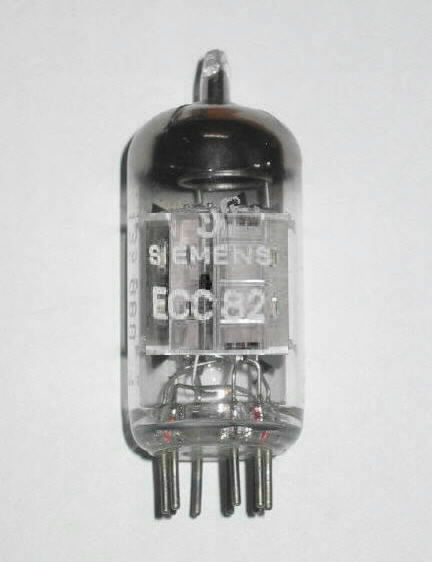

S & H ECC82 (made by Philips) Identified by: - Gf8 ΔXXX code - ring getter Comment: Common type. |
||
| Siemens & Halske E82CC types |
|||||
 |

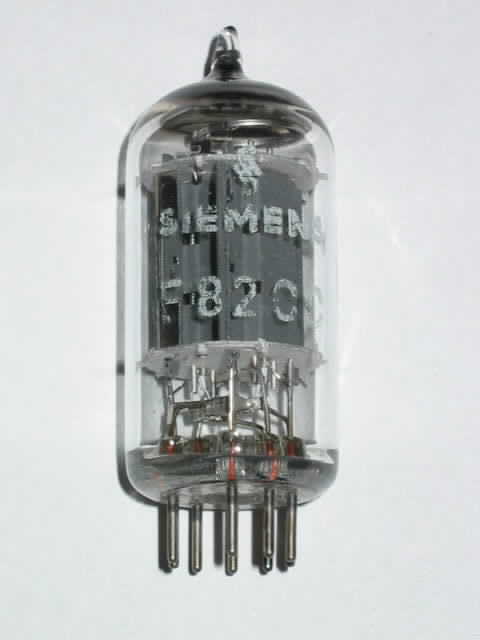

Siemens & Halske E82CC Identified by: - long plate tube - ring getter Comment: Rare. |
 |
Siemens & Halske E82CC Identified by: - triple mica - ≠ code - douple getter support Comment: Rare. |
||
 |

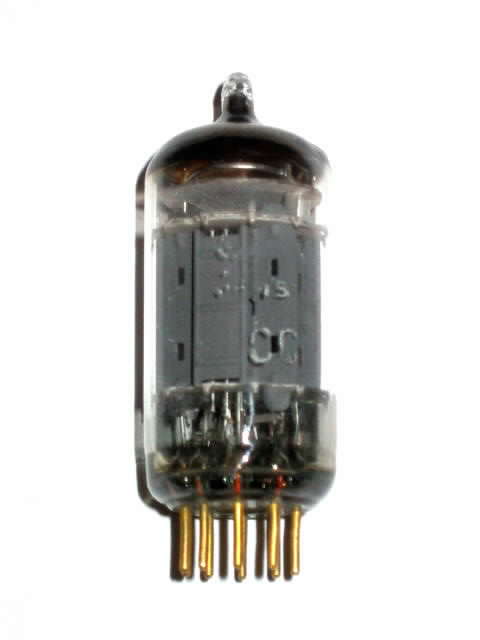

Siemens & Halske E82CC Identified by: - triple mica - gold pin tube Comment: Very rare. |
 |

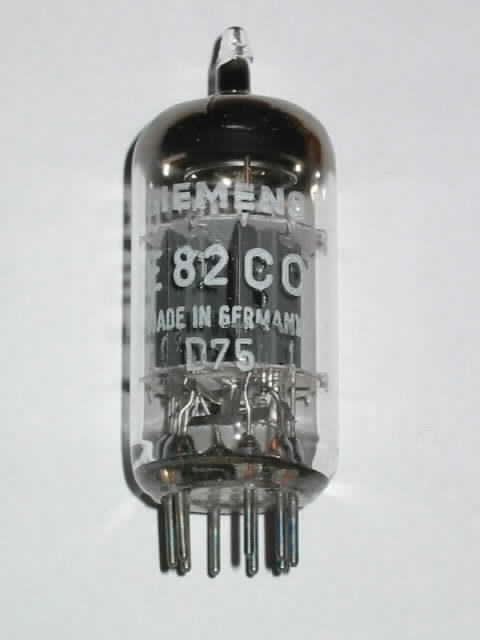

Siemens & Halske E82CC D3 Identified by: - triple mica - douple getter support Comment: Same as above tube, but with Philips label and D?3 ≠ code |
||
 |

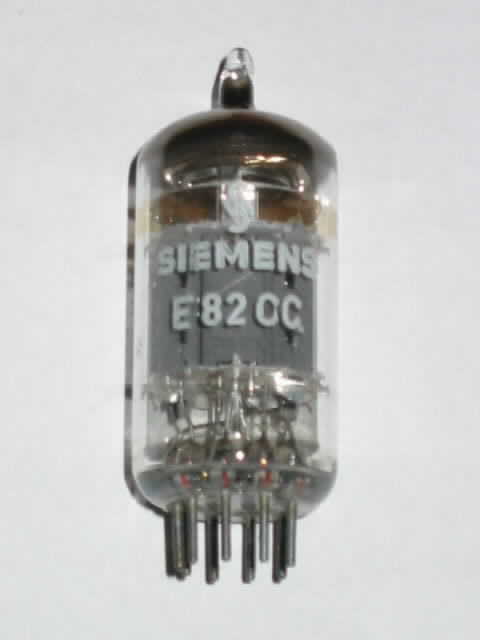

Siemens E82CC Identified by: - ≠ code - plate with 1 side hole Comment: Rare. Last version from Munic. |
||||
|
SEL Lorenz ECC82 |
|||||
 |

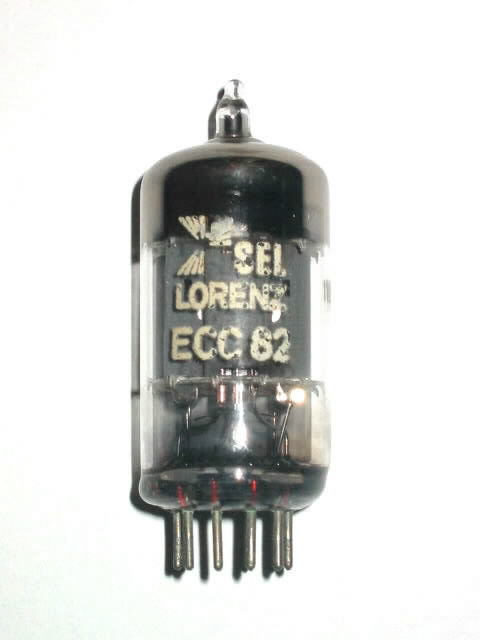

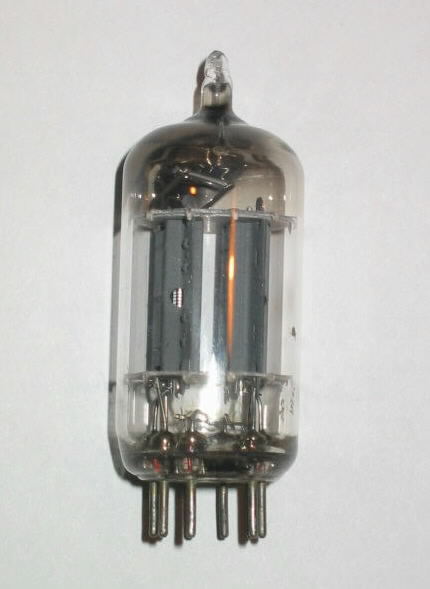

SEL Lorenz ECC82 Identified by: - ring getter - short plate Comment: Rare. No acid code. |
||||
|
|
|||||
 |
|
|
|
|
|
