The ECC40 Gallery




  The ECC40 is a tube with characteristics between the ECC82 and the ECC83. It has a Rimlock socket.

  The genuine ECC40 tubes have silver plated connectors (which usually look a little bit dirty).

  The ECC40 can be found in several Siemens power amps and preamps. In the later tube amps the ECC40 tubes were changed for ECC82s or ECC83s.

  All ECC40s shown were made by the Philips company.

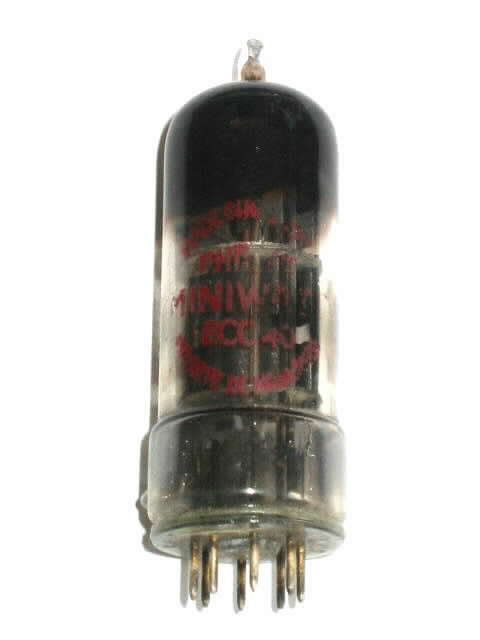

Code: 734 1G  (tube on picture)

Characteristics:

- black plates   - metal base

- disc getter

Comment:

Very Rare. 2x2 grid "wings" on top of plates.

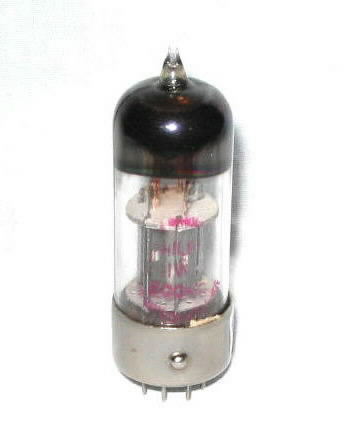

Code: LCC DA Hamburg

Characteristics:

- black plates

- metal base

Comment:

Very Rare. 2x2 grid "wings" on top of plates.

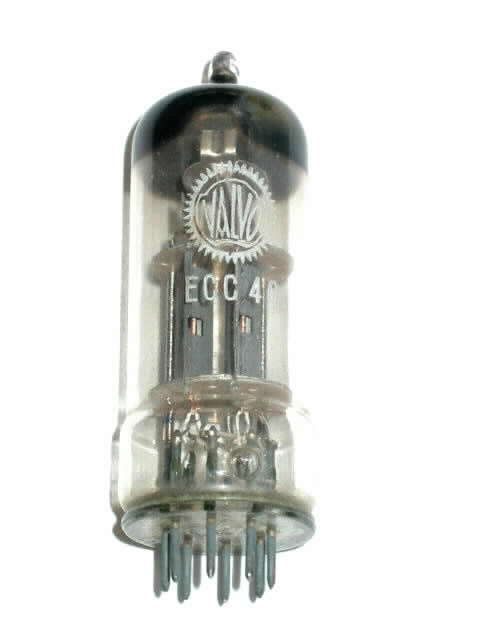

Code: LC2 58  (tube on picture)

Characteristics:

- black plates

- disc getter

Comment:

Very Rare. 2x2 grid "wings" on top of plates.

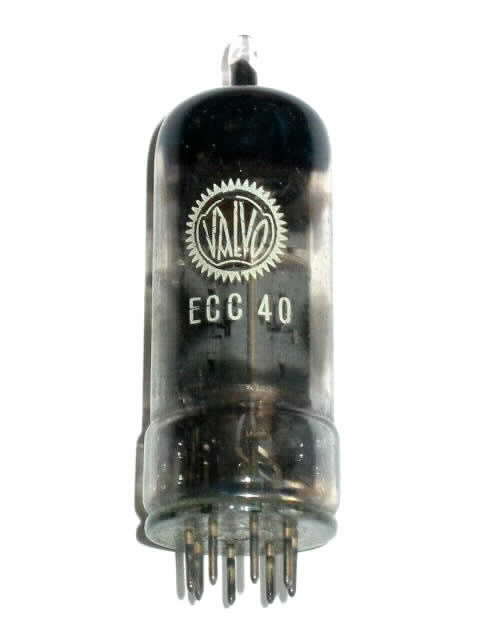

Code: LCR DX Hamburg

Characteristics:

- closed getter

- D-Getter

Comment:

Pretty rare. Very early version.

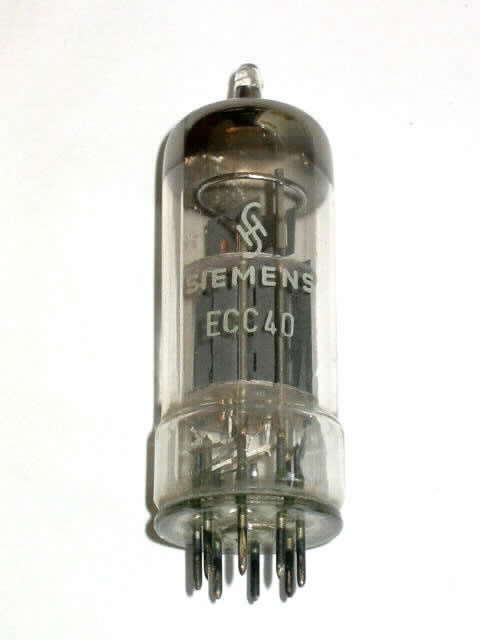

Code: LCC D7/D8/DT Hamburg

Characteristics:

- closed getter

- D-Getter

Comment:

Rare.

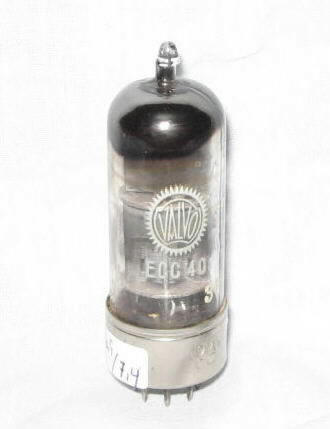

Code: LC2 D6X Hamburg

Characteristics:

- only 1 grid "wing" per section

- ring getter

Comment:

Rare.

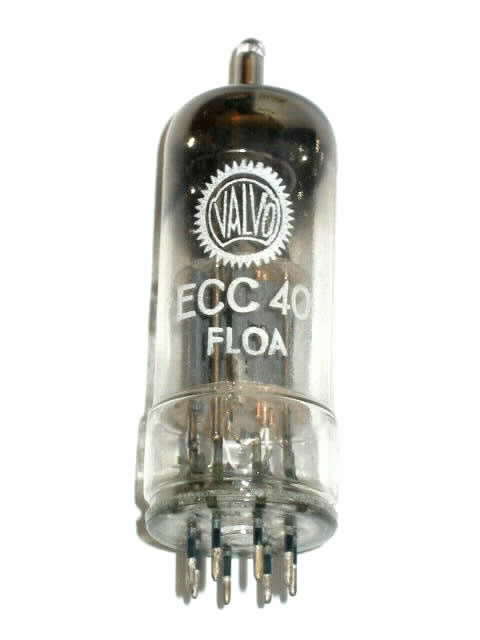

Code: LC5 ±XXX

Characteristics:

- only 1 grid "wing" per section

- ring getter

Comment:

Rare. Last version of this tube from the 1960s.

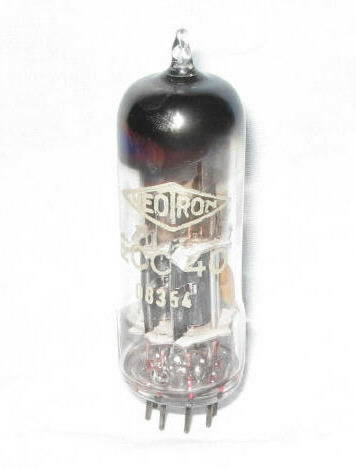

Code: maybe no Philips (French?)

Characteristics:

- only 1 grid "wing" per section

- oval getter

Comment:

Rare. Black plates.

  -
