| West German Stereo Tube Amps |
 |
|||||||
|
Not much! Of course there are big MONO block amps from Siemens, Klangfilm, Telefunken a.s.o., but these (here) were those for domestic use (no jukebox amps). - All amps have solid state rectifiers - except where otherwise noted (EZ81 or GZ34). - All amps have push pull output stages - except where marked as single ended. - Only "made in Germany" (no Dutch Philips or "Revox" or "Radio Iseli") units are listed. |
||||||||
|
||||||||
|
Made by |
Model | picture | driver tubes | output tubes | what you should know | |||
| ASCO |
) |
2 ECC83 | 4 EL84 |
Great! Rare! The Best! Ultralinear + cut core + 8 times interleaved OPT |
||||
|
|
||||||||
|

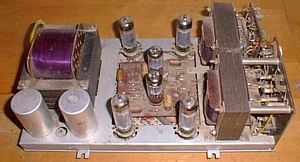

Braun |
CV11 |
) |
2 ECC83 | 4 EL84 | rare! | |||
|
|
||||||||

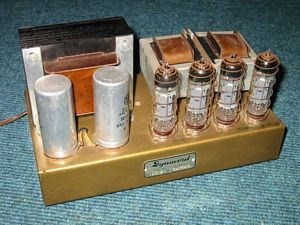

| Dynacord | LS8 |
) |
---- | 4 ECL82 | Very, very rare unit. | |||

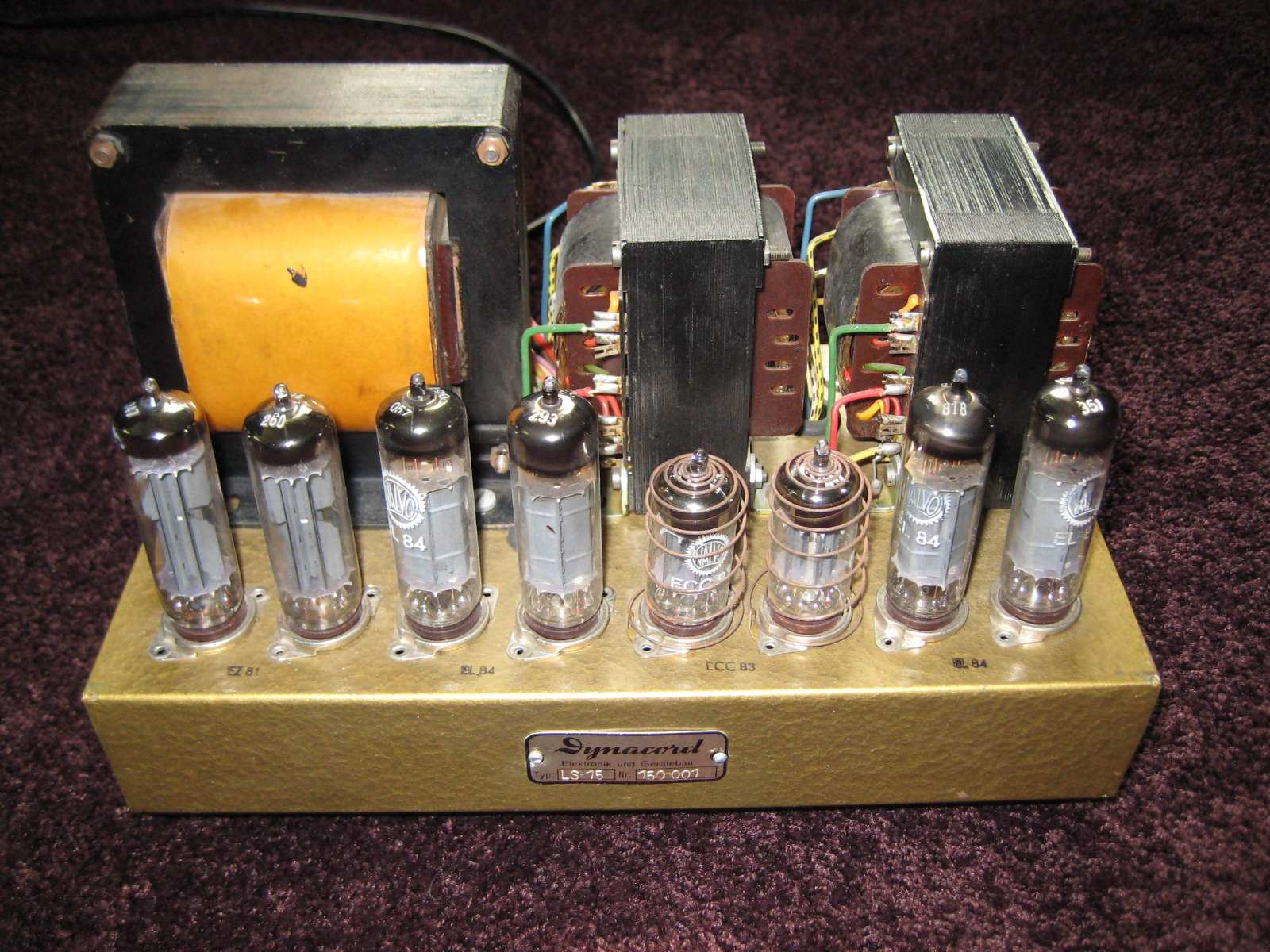

| LS15 |
) |
2 ECC83 | 4 EL84 | 2 EZ81 - nice! UL OPTs, but tetrode connected - rare unit. | ||||

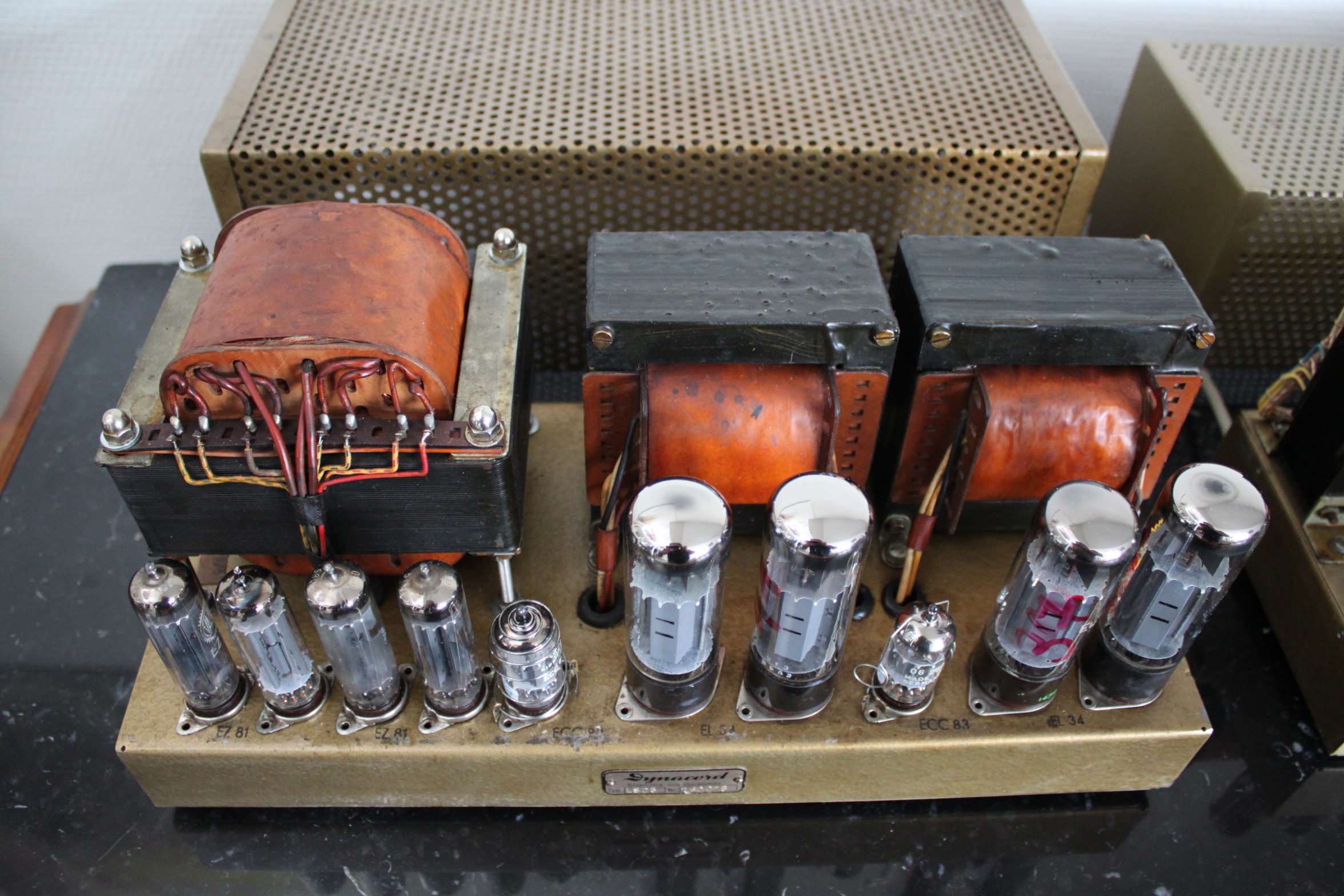

| LS25 |
) |
2 ECC83 | 4 EL34 |
4 EZ81 - very rare. The biggest German Stereo tube amp! |
||||
|
|
||||||||
|

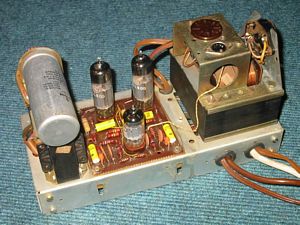

Graetz |
ECLL800 |
) |
1 ECC83 | 2 ECLL800 | Pretty rare! | |||
|
|
||||||||
| Grundig | NF25 |
) |
---- | 2 ECLL800 | rare! | |||

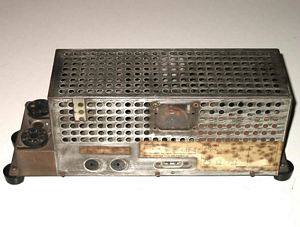

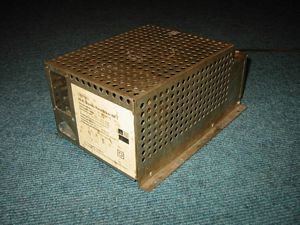

| NF 1 |
) |
2 ECC83 | 2 ELL80 | Nice amps from bigger stereo consoles, good sound - the NF1/10 lacks some bass | ||||
| NF 10 |
) |
2 ECC83 | 2 ELL80 | |||||
| NF2 NF20 |
) |
2 ECC83 | 4 EL84 | |||||
|
|
||||||||
|

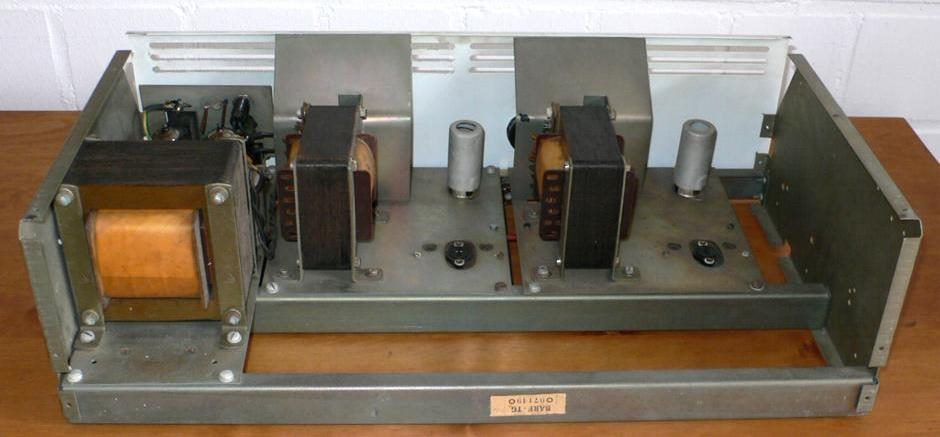

Heli |
VS1-32 |
) |
2 ECC83 | 2 EL84 | Very rare amp from East Germany | |||
|
|
||||||||
|

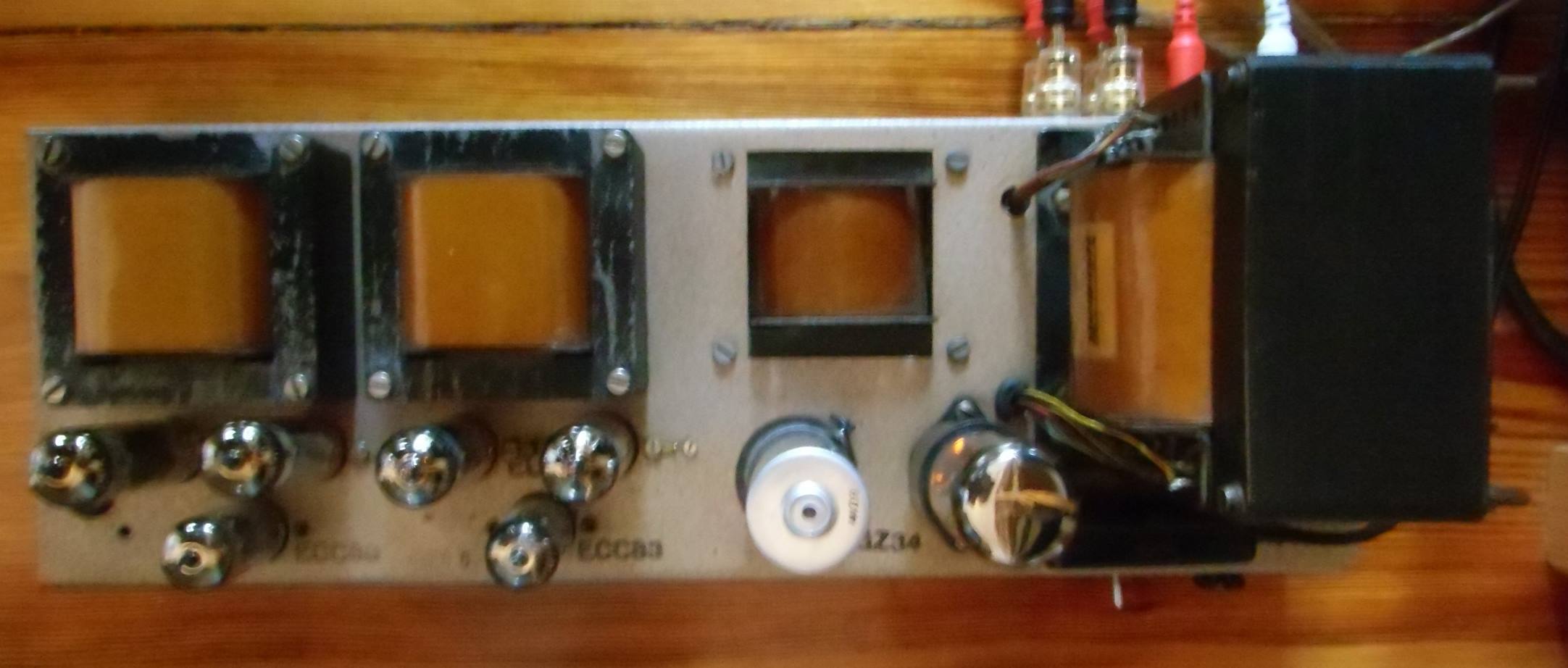

K+H |
ST-S2 |
) |
2 ECC83 | 4 EL84 | Very nice amp with GZ34 tube rectifier | |||
|
|
||||||||
|

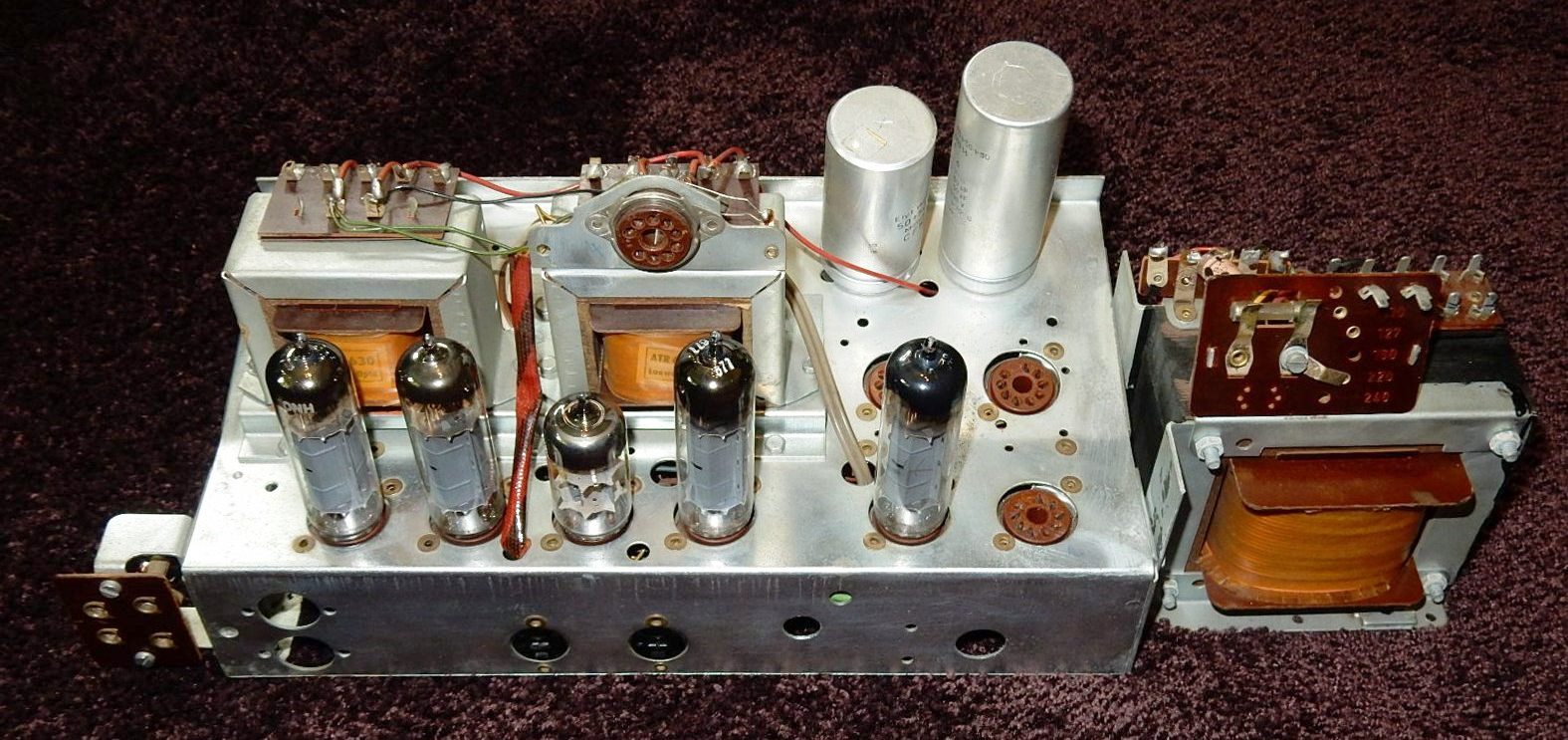

Loewe Opta |
EL84 |
) |
1 ECC83 | 4 EL84 | Ultra rare console power amp | |||
|
|
||||||||
| Nordmende | 582 |
) |
---- |
1 ELL80 Single Ended |
rare! The simplest German tube amp I've ever seen! | |||
| 3/683 |
) |
2 ECC83 | 2 ELL80 | great sounding amp after removing C211/241 for correct high freq. response | ||||
| 4/675 |
 |
---- |
1 ELL80 Single Ended |
rare! The simplest German tube amp I've ever seen! |
||||

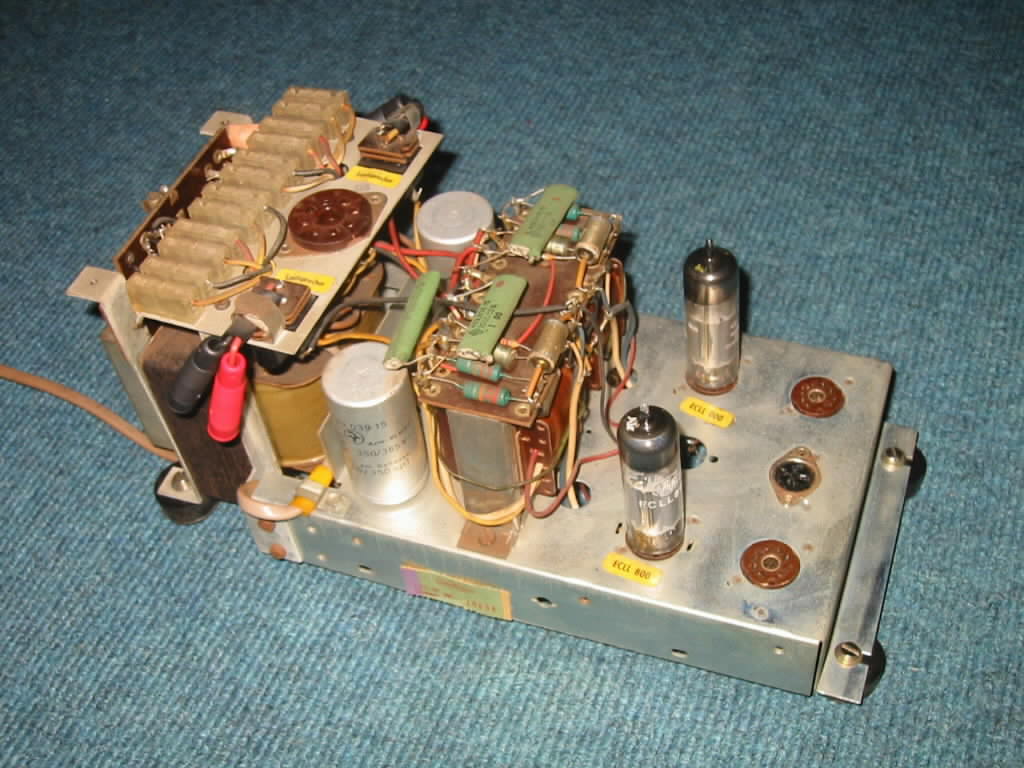

| ECLL80 |
) |
---- | 2 ECLL800 | rare! Similar to the 3/683 chassis | ||||
|
|
||||||||
|

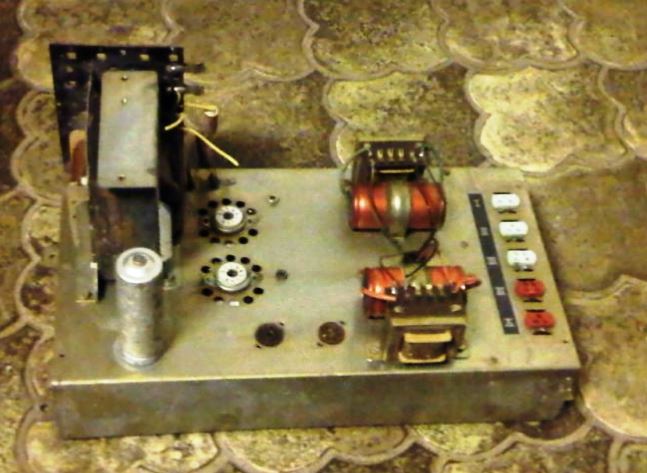

Saba |
Königin |
) |
---- | 2 EL84 | Rare amp from very big radio / TV console | |||
|
|
||||||||
| Telefunken | Concerto 2500 |
 |
2 ECC83 |
2 EL84 Single Ended |
great sounding (works best with 4 Ohm speakers) unit, that lacks some bass when equalizing PCB is not removed. | |||
| Opus 2430 |
) |
2 ECC83 | 4 EL95 | not found in Opus 2650 (transistorized) !! | ||||

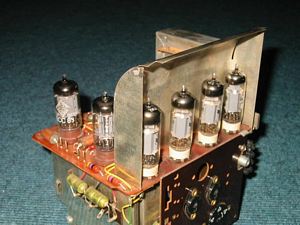

| Opus 2550 |
) |
2 ECC83 | 4 EL95 | not found in Opus 2650 (transistorized) !! | ||||
|
|
||||||||
