German Stereo Integrated Tube Amps


Deutsch



- All amps have solid state rectifiers - except where otherwise noted (EZ81 or GZ34)

- All amps have push pull output stages, except: K+H VS44, Philips AG9016/22, Telefunken

  S80, S81, Dual V25, Saba Stereo-Verstärker, Bölkow Belstereo, Elac PBV140, Heli HS-1,

  S+F Goldhorn, PE KV-21G and Dynacord ST3 and ST6

- Only factory built (so no "RIM" or "Arlt") and "made in Germany (no "Revox" or "Radio Iseli")

  for home use units are listed.



! Klick on "Model" to see details and more picture from the amp. Click on "Picture" to enlarge!





Made by

Model Picture Preamp tubes Output what you should know
    ASCO RVII   4 ECC83 4 EL95

Ultra rare...


    KV34 4 ECC808 / 4 ECC83 4 EL84 Great amp! Also very rare.



Bölkow Belstereo --- 2 ECL86

One of rarest amps from Germany. According to the logo Bölkow later joined MBB. (Messerschmitt Bölkow Blohm)


    Braun CSV 13 6 ECC83 4 EL84

Only the power amp differs. Prefer EL84 version. Preamp section is bad on both.


    CSV 60 4 ECC83 + 2 ECF80 4 EL500

    Dynacord Concert

6 ECC83 4 EL84

Great amp. Very well made and nice desgn. But also very rare...


    ST3

--- 2 ECL82

very rare amp


ST6

3 ECC83

2 EL84

Pretty rare single ended EL84 stereo amp with EZ81 tube rectifier. Absolutely GREAT !!!

ST12

2 ECC83 + 2 EF80

+ 2 EC92

4 EL84

EZ81 tube rectifier.

Strange cabinet design.

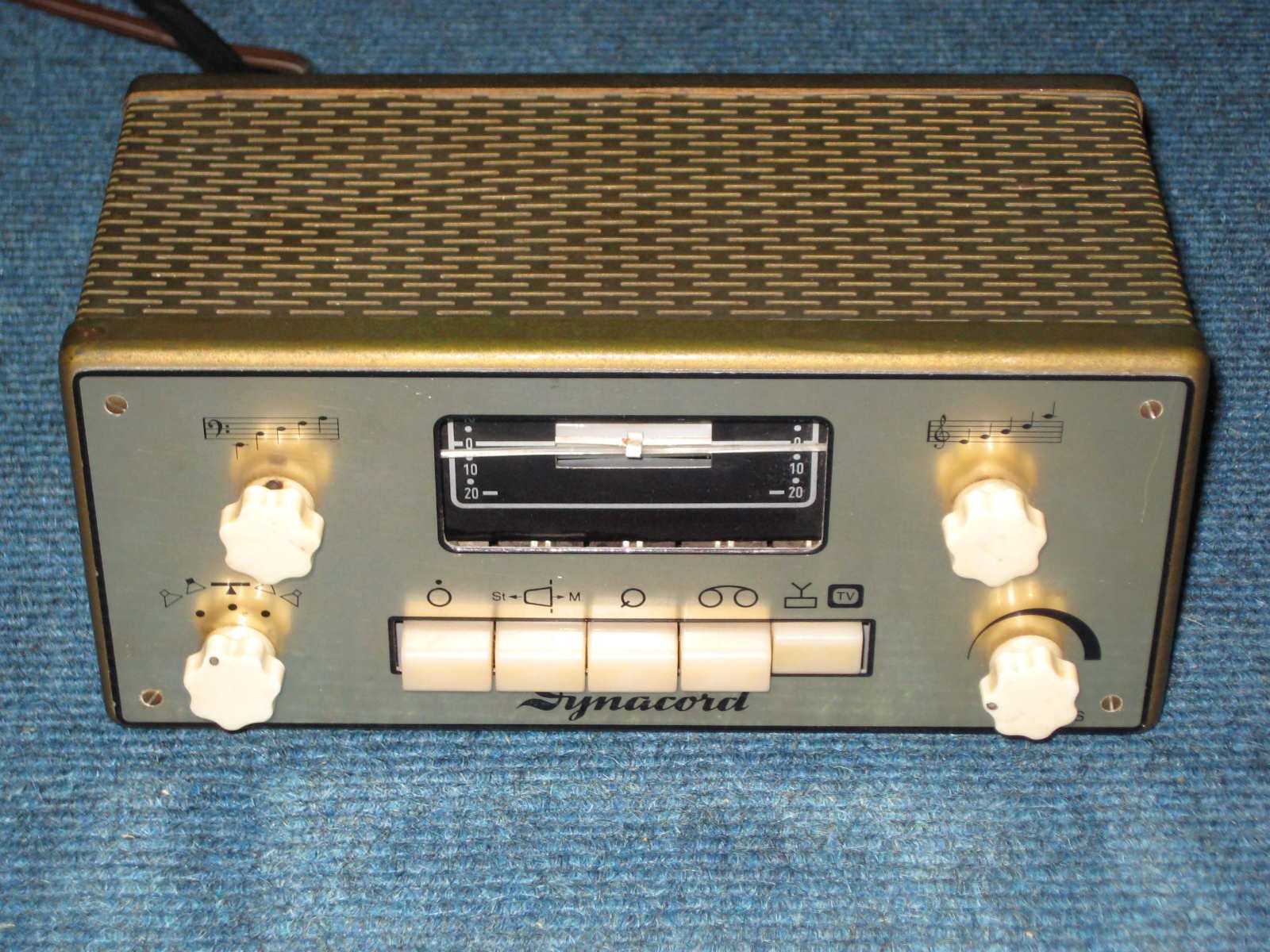

VVS

3 ECC83

EMM801

---

Rare preamp to be operated with LS8 or LS15 power amp.




    Dual CV 11   2 ECC808 2 ECLL800

same as PE HSV20




V25

CV1

--- 2 ECL86

Funny simple amp. Crazy frequency response...

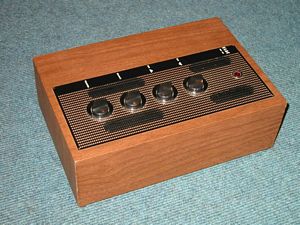

Elac PBV 140 --- 2 ECL86

One of rarest amps from Germany. Made by the famous manufacturer of great Phono cartridges.

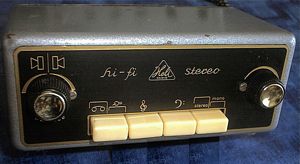

Heli Radio HS-1 --- 2 ECL82

Funny amp from Hempel in Limbach =HeLi (GDR). Consists of 2 units: Control unit + amp unit

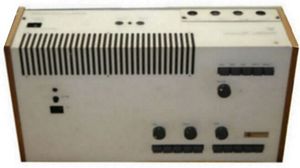

    VS-1

4 ECC83

2 ECC81

4 EL84

Another (rare) amp from the East Germany manufacturer.

2 EZ81 rectifier tubes



Klein +

Hummel

Telewatt

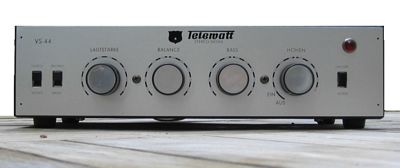

VS 44 1 ECC83 2 ECL86 funny ! EZ81

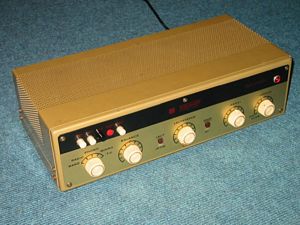

    VS 55 / 66 Klein + Hummel K+H Telewatt K&H VS55 VS 55 tube amp classic Röhrenverstärker 5 ECC83 4 ECL82

VS55 - VS60:

Earlier units use EZ81 tube rectifier.

Later versions with bigger output transformers.

Nice sounding amps which suffer from a higher noise floor.

Later distributed by Saba as Saba Telewatt, but still made by K+H


 VS 56 5 ECC808 4 ECL82
VS 60 Klein + Hummel K+H Telewatt K&H VS60 VS 60 tube amp classic Röhrenverstärker 5 ECC808 4 ECL82

    VS 70

6 ECC 83 / 2 ECF80 4 EL36

Most desirable stereo amp from K+H!! Only these use ultralinear output transformers.


    VS 71 6 ECC 808 / 2 ECF80 4 EL500
    VS 80

VS 110

6 ECC 808 / 2 ECF80 4 EL503

Too much power! Gets hot! Rare tubes!

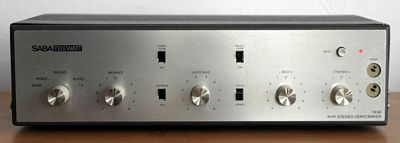

    TR 60 2 ECC808 4 EL86

transistorized preamp section



    MEL PIC-35 4 ECC808 5 ECC83 4EF86 4 EL34

great amp - use without cabinet only!



PE KV21G 1 ECC83 2 ECL86 Nice! Rare!
    HSV 20 2 ECC808 2 ECLL800

HSV type amps were designed and built in a joint venture with Dual, Sennheiser and Telefunken.

The HSV25 is very uses the same chassis as the Sennheiser VKS 203, but the circuit from the VKS254.

HSV60 = VKS604 = V820

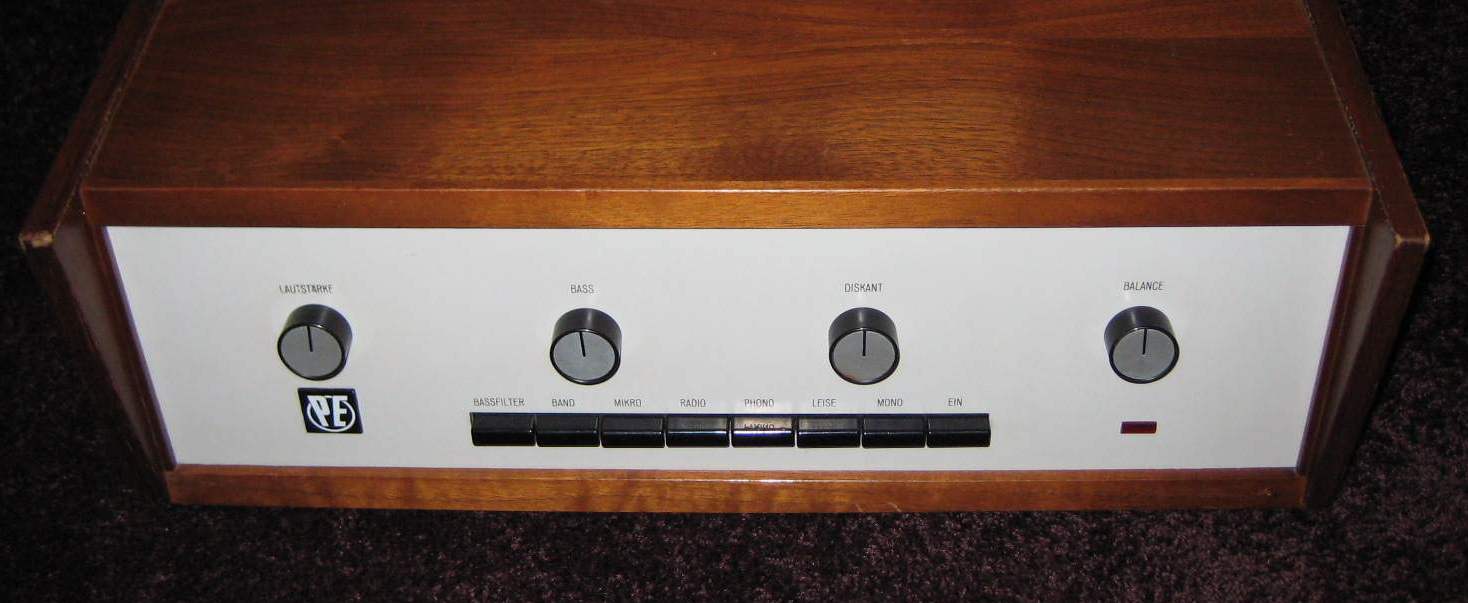

    HSV 25 2 ECC83 / 2 ECF80 4 EL86
    HSV 60 6 ECC 83 / 2 ECF80 4 EL500

    Philips AG 9016/22 2 ECC83 2 EL95

Very small OPTs, but OK as high frequency amp. Needs modification to work properly (click here)


    AG 9015 / 9018 2 EF86 / 4 ECC83 4 EL86

bad OPT, so bad sound - GZ34

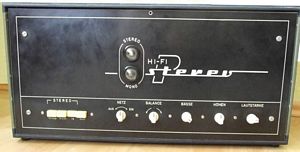

    Pietsch Stereo-Verstärker 5 ECC83 4 EL84

Very rare amp from Klaus Werner Pietsch from Rothenburg Lausitz (GDR). EYY13 tube rect.





Radio RIM ST-2

3 ECC83

2 EL84

Same as the Dynacord ST-6 amp. Rare!

    Maestro 6 ECC83 2 ELL80

Well made amplifier using UL OPTs giving   2x8 watts.

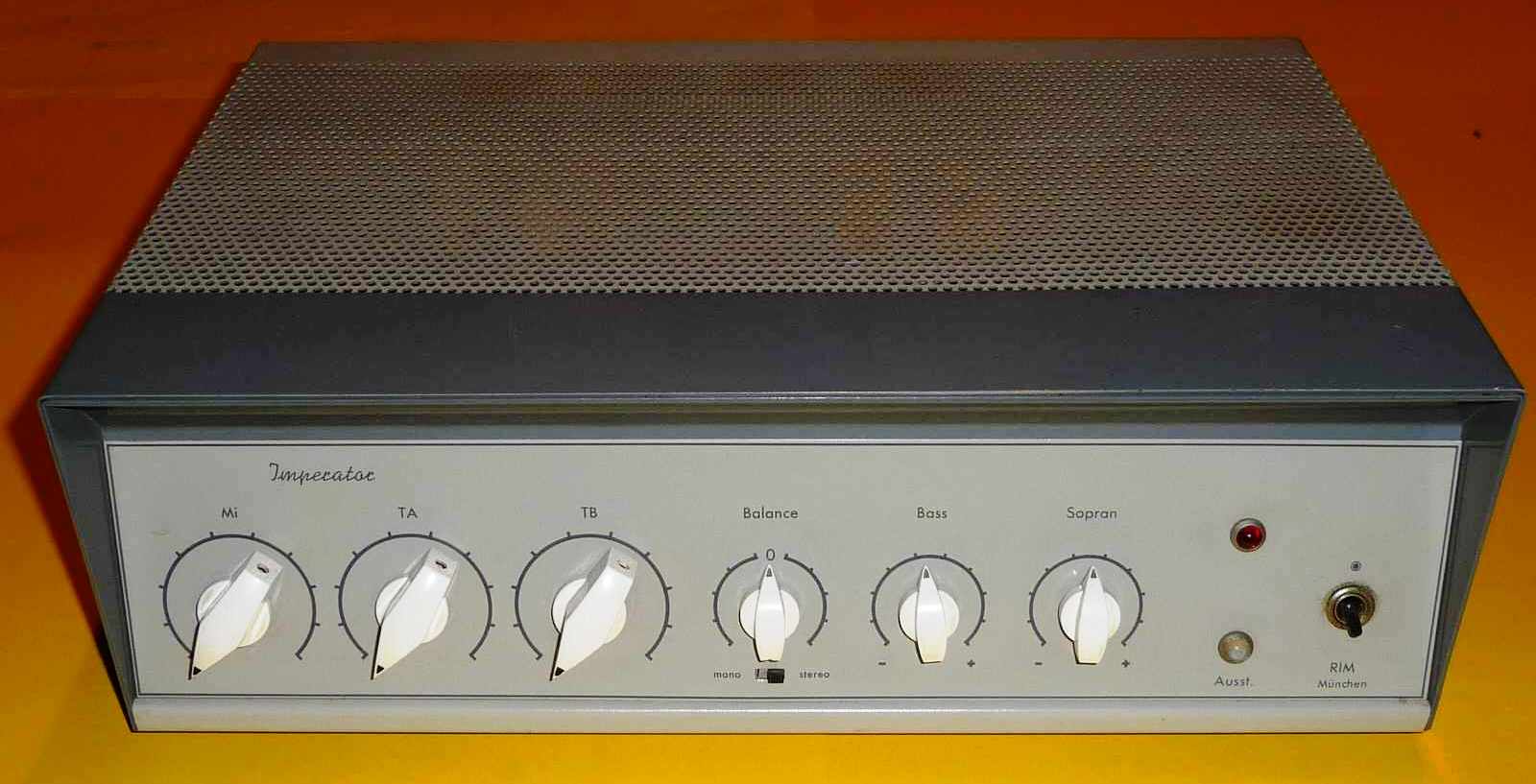

Imperator 4 ECC83 / 2 EF86 2D21 Indicator 4 EL84

GZ34 Rectifier

UL Output transformer

Stereomaster 2 ECC83 / 2 EF804 2 EL84

EZ81 Rectifier

Single ended amp

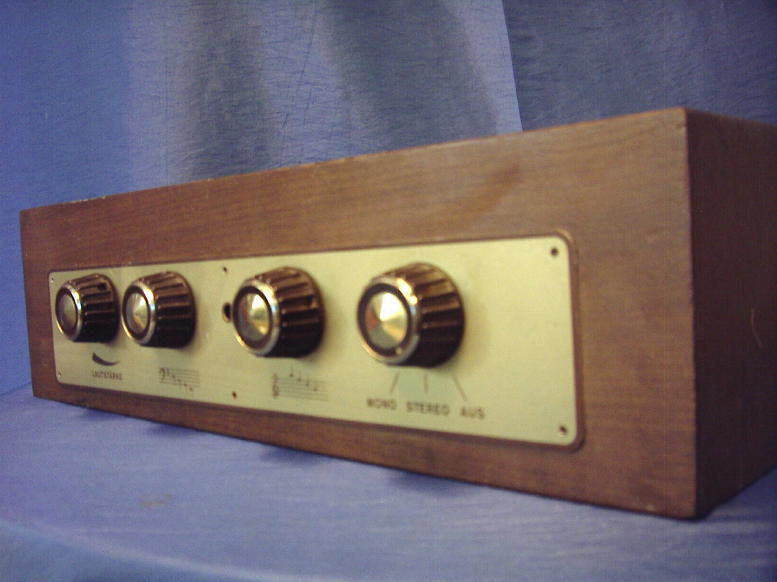

    Saba Stereo-Verstärker 1 ECC83 2 EL95

Nice! Very Rare!


    Telewatt

Look above in the K+H Klein + Hummel section

for the Saba Telewatt amps

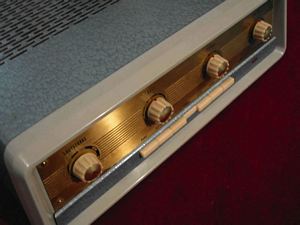

    Sennheiser VKS 203 Sennheiser Labor W Wennebostel VKS203 VKS 203 tube amp classic Röhrenverstärker 3 ECC83 / 1 ECC81 4 EL95

ultralinear - nice sound! - EZ81

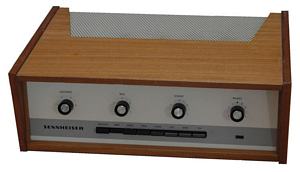

    VKS 254 2 ECC83 / 2 ECF80 4 EL86

OK, I prefer EL84s !!

See PE amp for more information.


    VKS 604 4 ECC808 2 ECC81 2 ECF80 4 EL500

PCB - gets very hot - bad preamp section

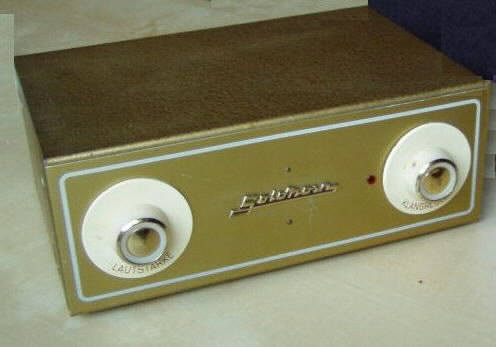

S+F

Goldhorn

Goldhorn --- 2 ECL82

Very rare amp from very small West Germany manufacturer.



    Telefunken

S80

S81

S82

--- 2 ECL82

bigger coupling caps for bass response needed


    V 811 5 ECC83 4 ECL82

same as Telewatt VS56


    V 819 2 ECC83 / 2 ECF80 4 EL86

OK, I prefer EL84s !! Same circuit as VKS 254 and HSV25.


V 820 4 ECC808 2 ECC81 2 ECF80 4 EL500

same as Sennheiser 604
